Full automatic C purlin roll forming machine quick-change

Features

• Full automatic C purlin roll forming machine is designed for the purpose of automatic size changing via both frames being freely adjustable.
• PLC control system with Simatic Panel Touch, through adjustment is fully power driven.
• When required, punching and shearing device can be avaible.
• Auto C features high efficiency, easy handling, quick size changing and security.

Full automatic C purlin roll forming machine Profile Parameters:

• Thickness: 1.5-3.0mm
• Web width ranges from 80-300mm
• Flange height ranges from 40-80mm

Full Automatic C Purlin Roll Forming Machine Application:

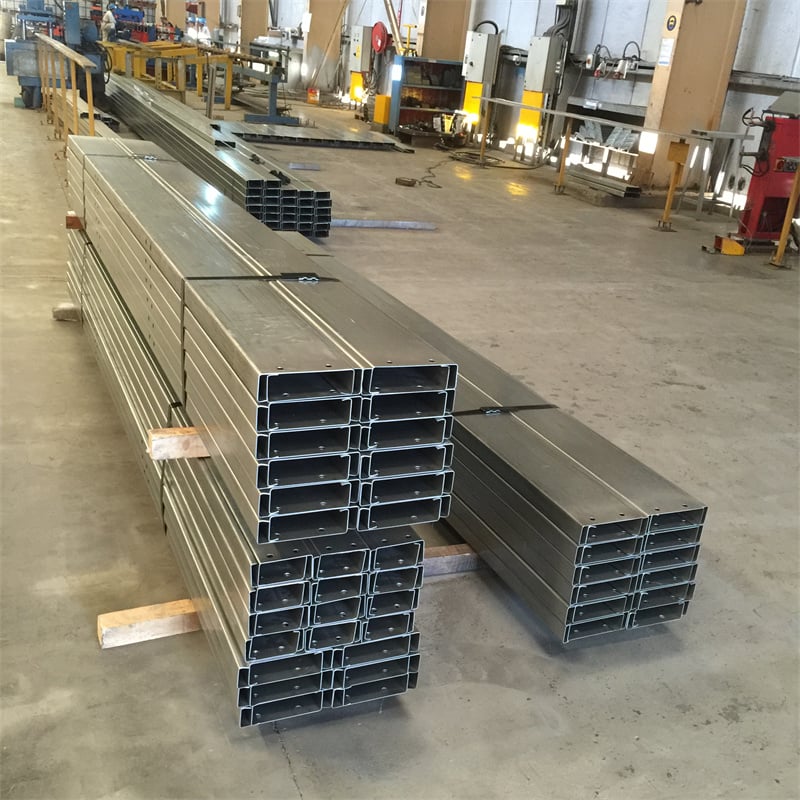

The finished products are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.

Process Flow:

Uncoiler — Feeding — Straightening — Pre-punching — Roll Forming — Cutting — Exit Rack

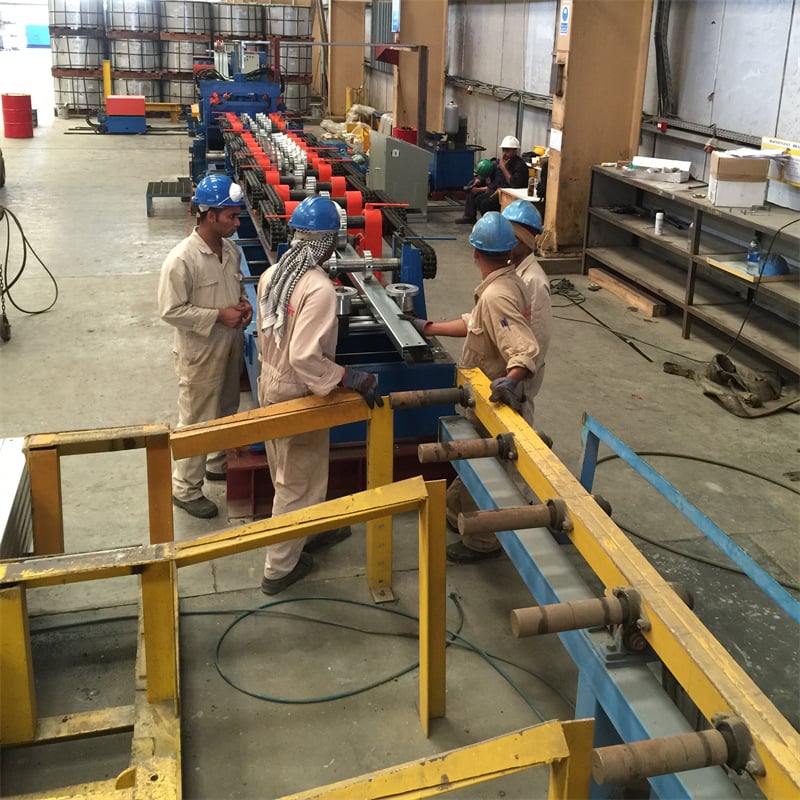

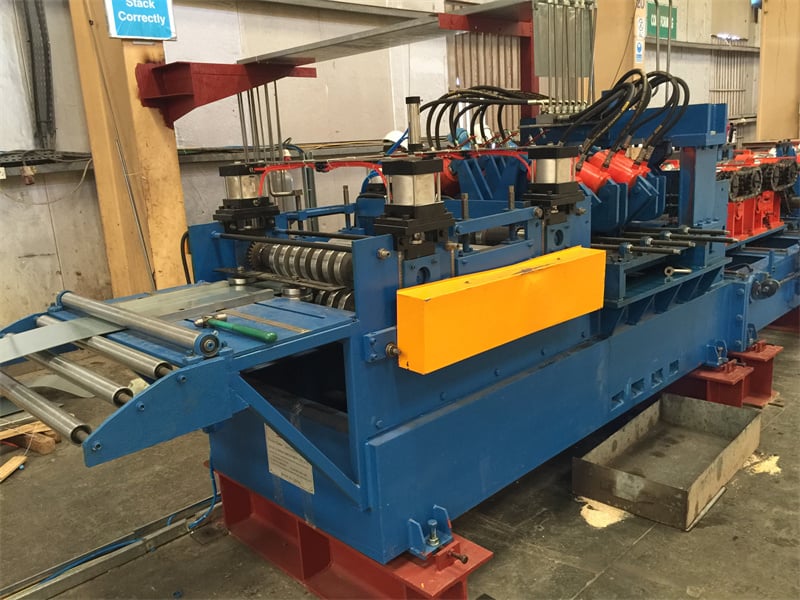

Machine Configurations

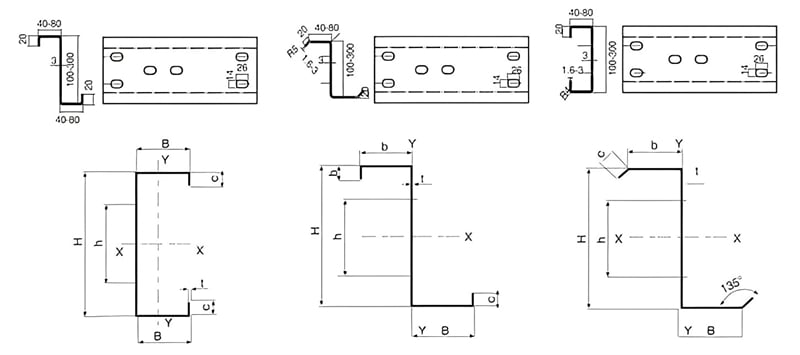

Profile Drawings For Reference

How Is The Automation Of A Fully Automated Roll Forming Machine Achieved?

The automation of a fully automated roll forming machine is achieved through the integration of various components and technologies that work together to automate the production process. Here are the key elements that contribute to the automation:

1. Control System: A sophisticated control system is at the heart of automation. It includes programmable logic controllers (PLCs) or computer numerical control (CNC) systems that manage and coordinate the machine’s operations. The control system receives input from sensors and provides instructions to different components for automated functioning.
2. Sensors: Sensors are used to detect and measure various parameters such as material position, dimensions, speed, and alignment. They provide real-time feedback to the control system, enabling it to make adjustments and control the machine’s operations accordingly.

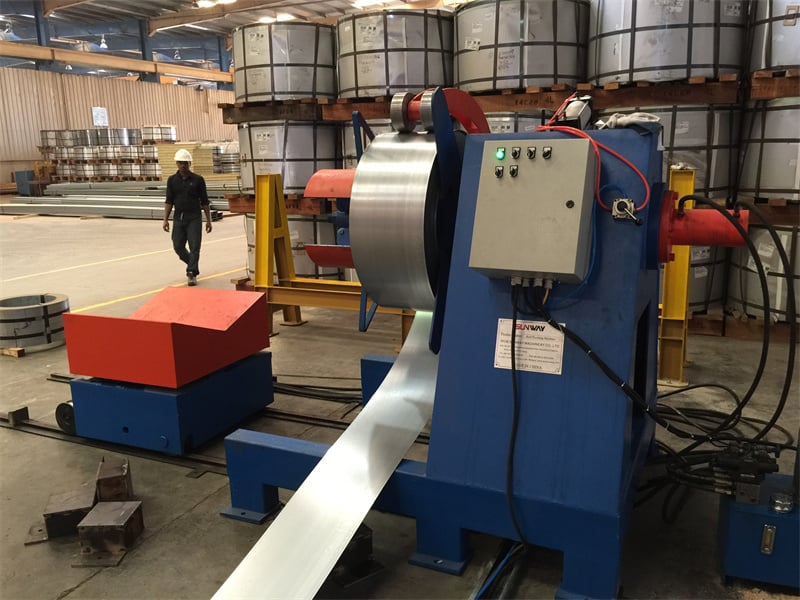

3. Automatic Feeding System: An automatic feeding system, often equipped with motorized or hydraulic decoilers, is responsible for unwinding and feeding the raw material (metal coil) into the roll forming line without manual intervention. It may include sensors to ensure proper material tension and alignment.
4. Roll Forming Stations: The roll forming stations consist of multiple sets of rollers and forming tools. They are designed to shape the raw material into the desired profile gradually. Automated adjustment mechanisms, driven by motors or actuators, control the position and settings of the rollers to achieve precise forming.
5. Cutting Mechanism: An automated cutting mechanism is employed to cut the formed profiles to the desired lengths. It can be a flying cutoff system that cuts profiles without stopping the production line. The cutting operation is synchronized with the control system for precise and consistent cutting.
6. Length Measurement and Control: Length measurement devices, such as encoders or laser sensors, are used to accurately measure the length of the formed profiles. The control system utilizes this information to control the cutting mechanism and ensure the profiles are cut at the desired lengths.
7. Stacking or Discharge Systems: Automated stacking or discharge systems are employed to handle the finished profiles. This may include conveyor systems, robotic arms, or other mechanical devices that collect, stack, and organize the profiles for further processing or packaging.

By integrating these components and technologies, a fully automated roll forming machine achieves seamless coordination, control, and adjustment of the various stages of the production process. The automation minimizes manual intervention, increases production efficiency, improves accuracy, and ensures consistent quality output.

Advantage Of OEM C Purlin Roll Forming Machine

1. Customization: As an OEM machine, it can be customized to meet specific requirements and design specifications of the customer. This allows for flexibility in producing C purlins of different sizes, shapes, and dimensions.
2. Quality and Precision: OEM machines are typically designed and built with high-quality materials and advanced technology. They offer excellent precision in the roll forming process, ensuring accurate and consistent production of C purlins.
3. Efficiency and Productivity: C Purlin Roll Forming Machines are designed for high-speed production, enabling efficient manufacturing processes. The automation features and advanced controls of the OEM machine enhance productivity and reduce manual labor requirements.
4. Cost Savings: By investing in an OEM machine, manufacturers can achieve cost savings in the long run. The high-speed production, reduced material waste, and efficient use of resources contribute to overall cost reductions and improved profitability.
5. Reliability and Durability: OEM machines are built with durability in mind, using high-quality components and robust construction. This ensures reliable and continuous operation, minimizing downtime and maintenance costs.
6. Technical Support: OEM manufacturers typically provide comprehensive technical support and after-sales service. This includes installation assistance, training, troubleshooting, and spare parts availability. Having reliable technical support can help manufacturers maximize the performance and lifespan of the machine.
7. Competitive Edge: Utilizing an OEM C Purlin Roll Forming Machine can provide a competitive advantage in the market. The ability to produce high-quality C purlins efficiently and effectively can differentiate a manufacturer from competitors, leading to increased market share and customer satisfaction.
