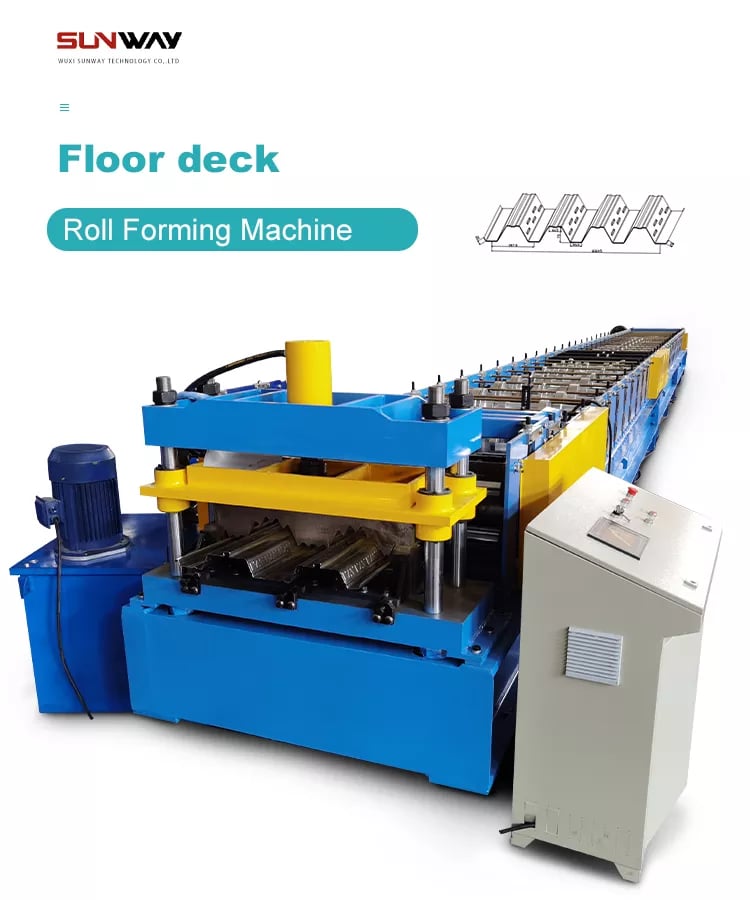

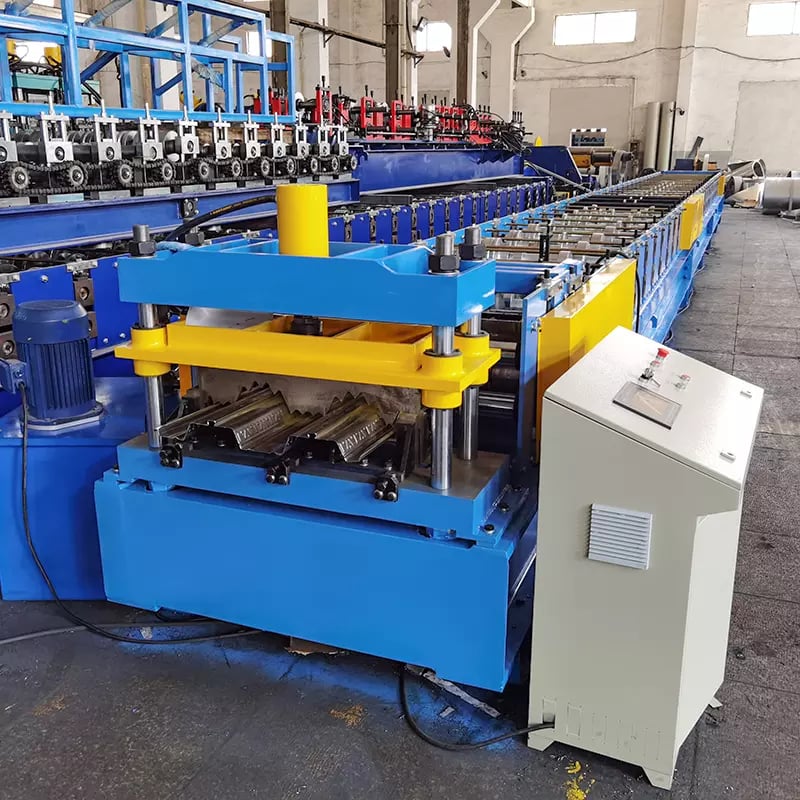

Floor Deck Roll Forming Machine

Floor deck roll forming machine, sometimes also named deck floor or metal deck roll forming machine, which is used to produce floor deck panel. It is used to support concrete or insulating membrane of a roof and developed to provide a structurally efficient product for use in roof and floor systems.

Its design and fabrication maximizes the properties of the steel in order to create a high strength-to-weight ratio, which lowers the material handling and erection costs but maintains the durability that has been proven by over 50 years of satisfactory performance.

Despite the fact that it is a structural component, its uniform quality can offer an attractive appearance, especially with the use of properly specified shop and field applied coatings. Steel deck is also a component of many UL and ULC approved fire rated assemblies.

In Construction Industries, we are able to manufacture more machines like main channel roll forming machine, purlin roll forming machine, drywall roll forming machine, stud roll forming machine, track roll forming machine, top hat roll forming machine, clip roll forming machine, metal deck (floor deck) roll forming machine, roof/wall panel roll forming machine, roof tile roll forming machine, corrugated roll forming machine, ridge cap roll forming machine, downspout roll forming machine, etc.

We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your all requirements. Whichever line you choose, the quality of SUNWAY Machinery will ensure you obtain perfectly functional profiles.

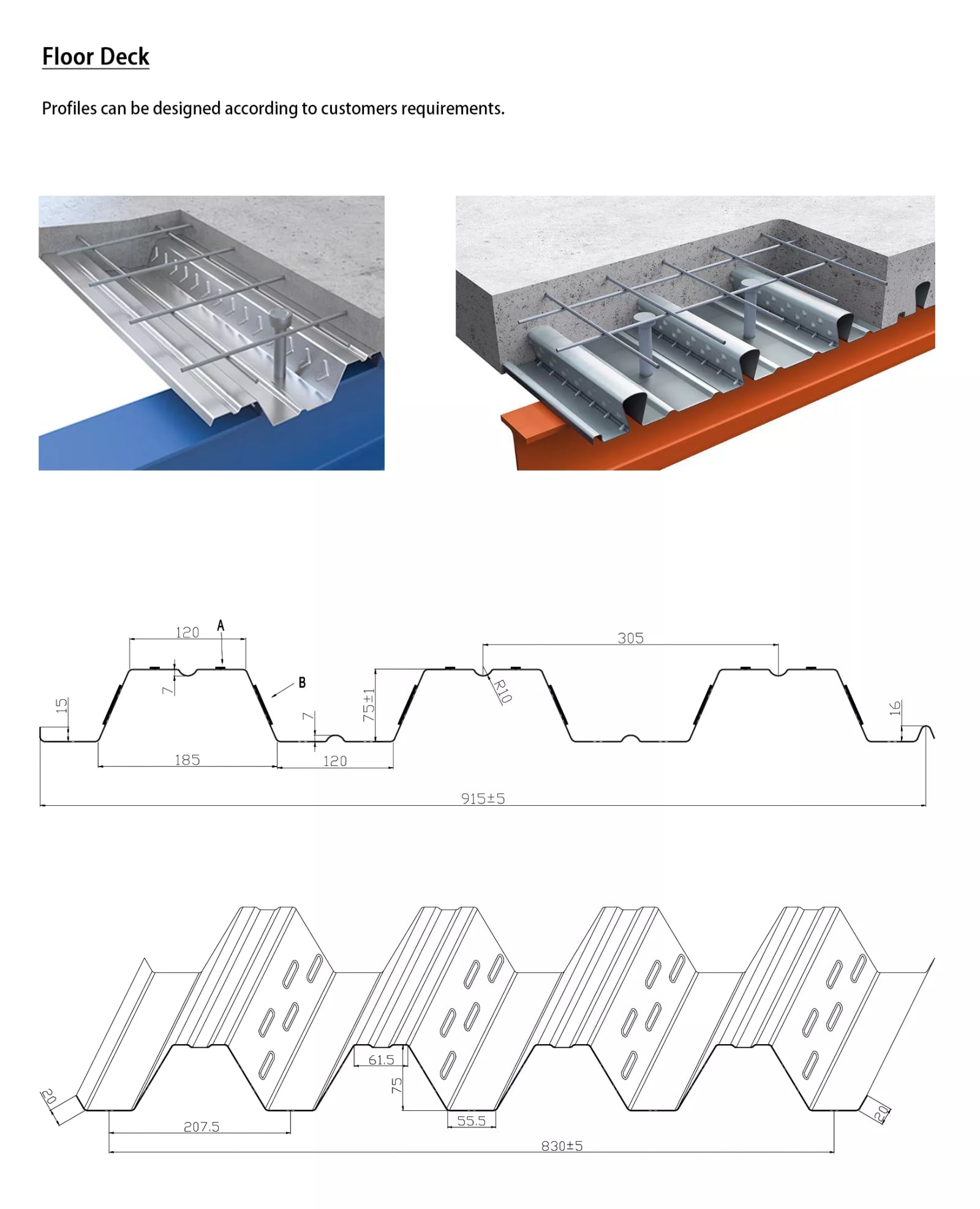

Profile Drawings

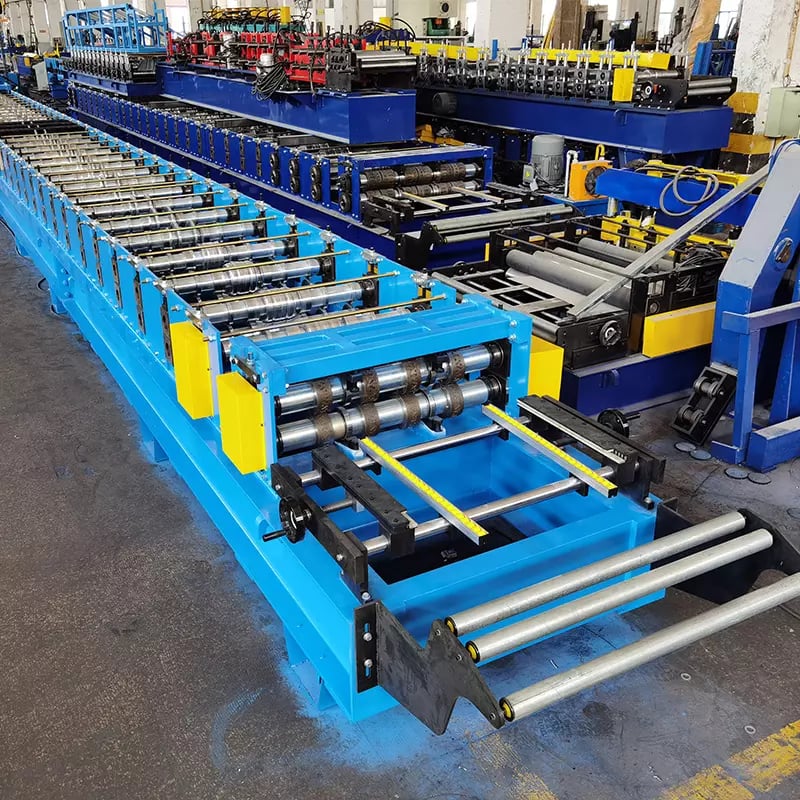

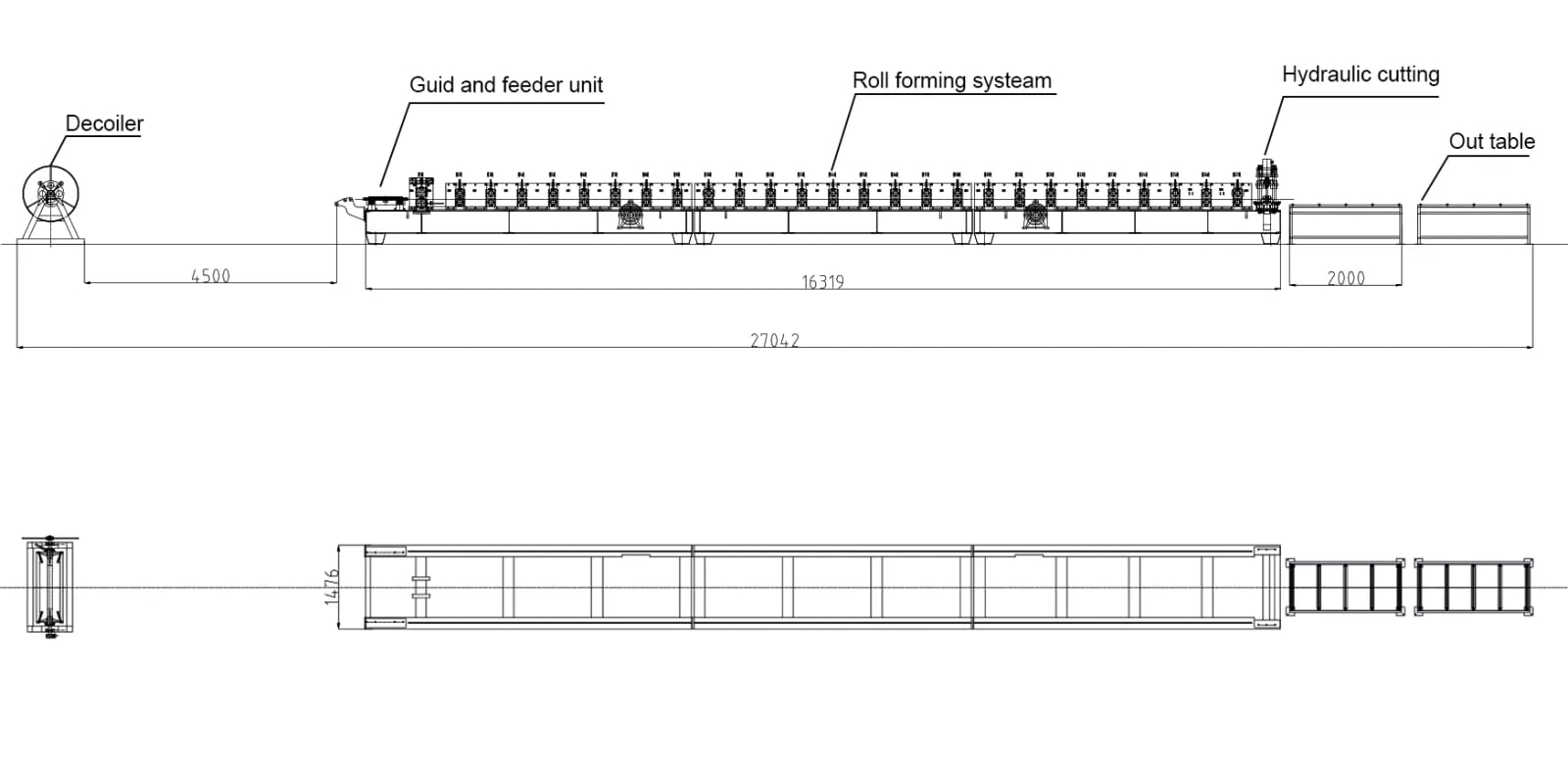

Production Line

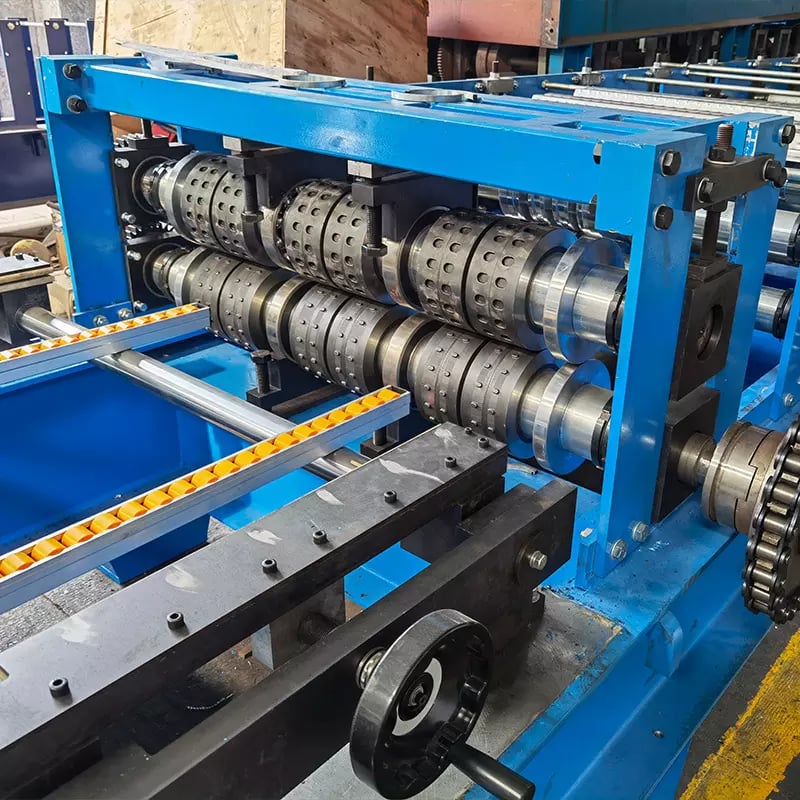

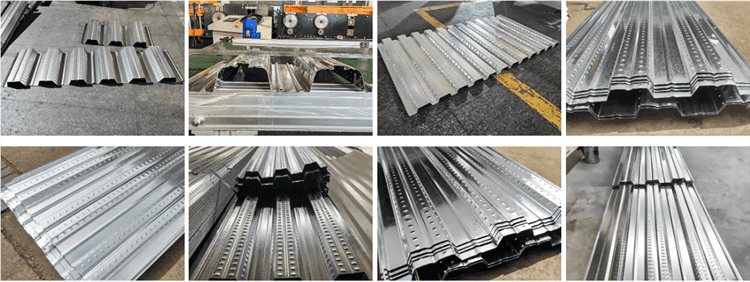

Product Details

Product Parameters

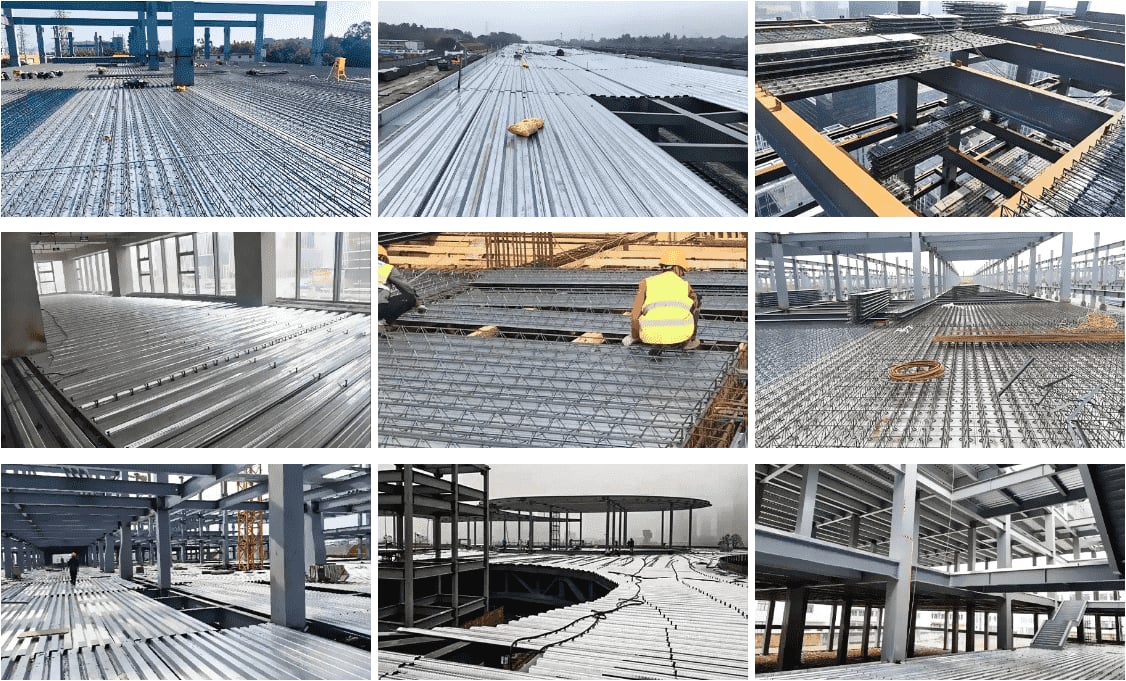

Application

What Is Floor Deck Roll Forming Machine?

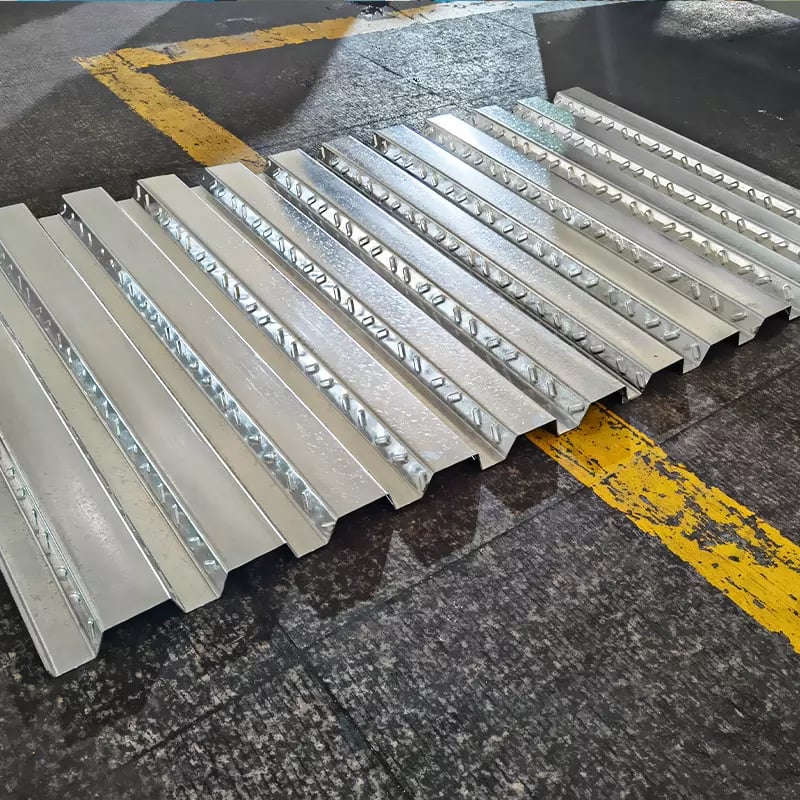

A floor deck roll forming machine is a type of industrial machinery used to manufacture floor decking panels. Floor decking panels are commonly used in the construction industry as structural components for floors in buildings and bridges.

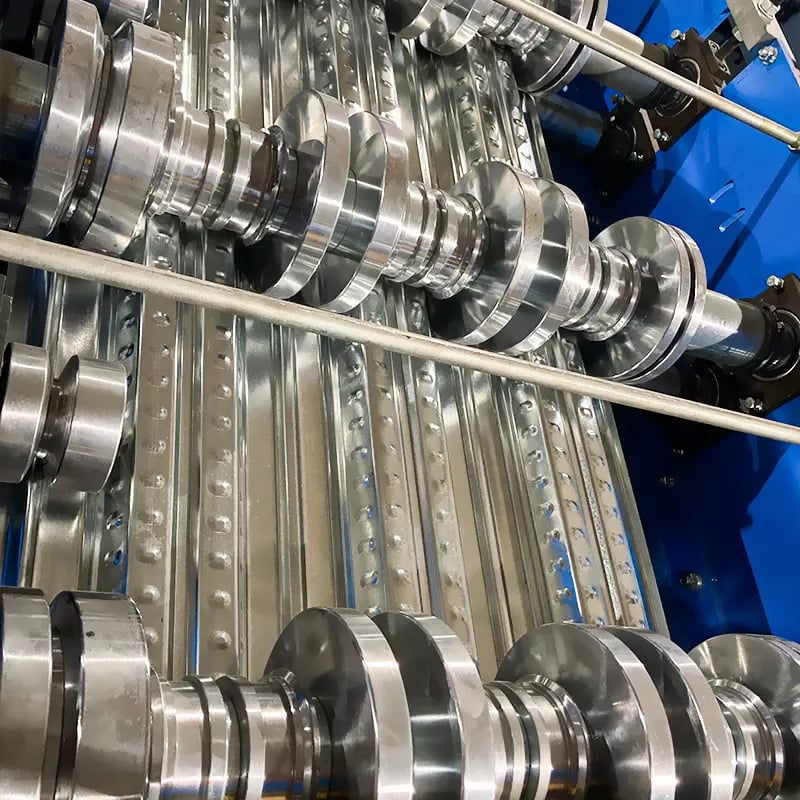

The roll forming machine is designed to continuously process metal coils, typically steel, into floor deck panels of uniform shape and size. The process involves feeding the coil into the machine, which then passes it through a series of rollers and dies. These rollers and dies gradually shape the metal into the desired profile and cut it to the required length.

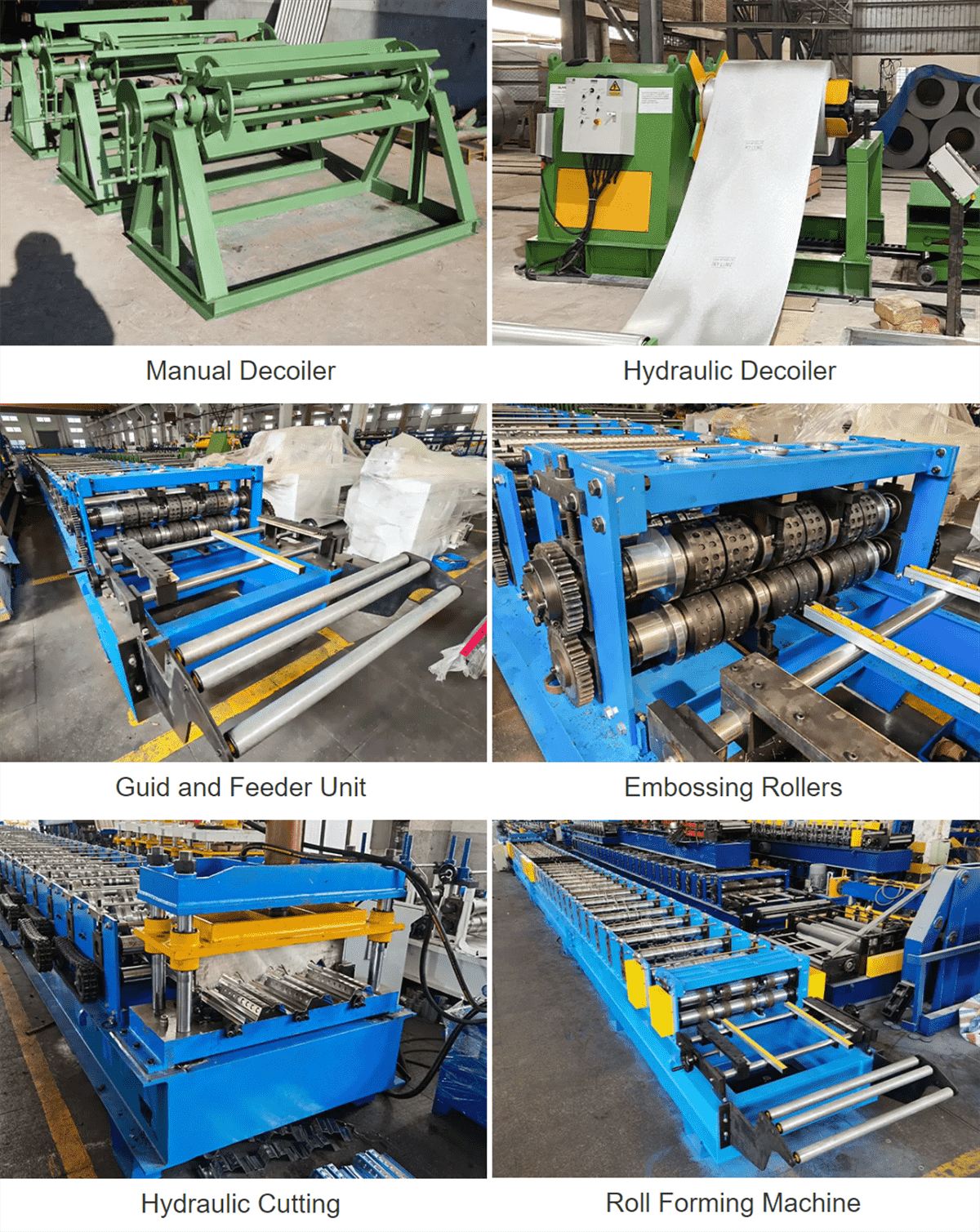

The floor deck roll forming machine is equipped with various components, such as decoilers (to hold and feed the coil), leveling devices (to ensure a flat sheet), roll forming stations (to shape the metal), cutting tools (to cut the panels to the desired length), and stacking or collecting mechanisms (to accumulate the finished panels).

The machine operates in a continuous manner, with the metal coil being fed through the machine at a predetermined speed. As the metal passes through the roll forming stations, it gradually takes the shape of the floor deck profile. The cutting tools then trim the panels to the specified length, and the finished panels are collected or stacked for further processing or transportation.

Floor deck roll forming machines are highly efficient and capable of producing large quantities of floor decking panels with high precision and consistency. They are widely used in the construction industry to meet the demand for durable and structurally sound flooring solutions.

Application Of Steel Floor Decking Roll Forming Machine

The steel floor decking roll forming machine is specifically designed for the production of steel floor decking panels, which have various applications in the construction industry. Here are some common applications:

1. Commercial and Industrial Buildings: Steel floor decking panels are commonly used in the construction of commercial and industrial buildings. They provide a strong and durable flooring solution that can support heavy loads, such as machinery, equipment, and storage. The panels are typically used in the construction of floors, mezzanines, and roofs.
2. High-Rise Buildings: In high-rise buildings, steel floor decking panels are used as a formwork system during the construction process. The panels are installed temporarily to support the wet concrete during the pouring and curing stages. Once the concrete has hardened, the steel decking panels become an integral part of the floor structure, providing strength and stability.
3. Composite Floor Systems: Steel floor decking panels are often used in composite floor systems, where they work together with reinforced concrete. The panels act as a formwork during the concrete pouring stage and later serve as tensile reinforcement for the composite floor. This combination results in a strong, lightweight, and efficient floor system.
4. Residential Construction: Steel floor decking panels are also used in residential construction projects. They can be used as a flooring solution for houses, apartments, and condominiums, providing a sturdy and reliable surface for living spaces.
5. Bridge Construction: Steel floor decking panels find application in bridge construction as well. They are used as bridge deck components, providing a solid and durable surface for vehicles to travel on. The panels can be designed to meet specific load requirements and bridge design specifications.

Overall, the steel floor decking roll forming machine enables the efficient production of floor decking panels that are widely used in various construction projects, offering strength, durability, and versatility in different applications.

How To Choose Composite Floor Deck Roll Forming Machine?

When choosing a composite floor deck roll forming machine, several factors need to be considered to ensure that you select the right machine for your specific requirements. Here are some key considerations:

1. Material and Specifications: Determine the type and thickness of the materials you will be using for the composite floor deck panels. Different machines may be designed to handle specific material types and thicknesses. Ensure that the machine you choose can handle the materials you plan to work with.
2. Production Capacity: Evaluate your production needs in terms of the desired output and speed. Consider the required production capacity in terms of the number of panels per hour or per day. Look for a machine that can meet your production targets efficiently.
3. Profile and Dimensions: Specify the required profile and dimensions of the composite floor deck panels. The machine should be capable of producing the desired profile accurately and consistently. Pay attention to the width, height, and any special features or embossments required.
4. Automation and Control System: Consider the level of automation and control system capabilities you need. Some machines offer advanced features such as touch screen interfaces, programmable logic controllers (PLCs), and automatic adjustment systems. These features can enhance productivity, precision, and ease of operation.
5. Roll Forming Design: Assess the design of the roll forming stations, tooling, and cutting mechanisms. Look for a machine that has sturdy construction and high-quality components to ensure reliable and consistent performance over time. The tooling should be durable and easily adjustable for different panel profiles.
6. After-Sales Support: Evaluate the reputation and after-sales support provided by the manufacturer or supplier. Ensure that they offer comprehensive technical support, training, and access to spare parts. It’s beneficial to choose a reputable manufacturer with a proven track record in producing roll forming machines.
7. Cost and Return on Investment: Consider the cost of the machine and its potential return on investment. Compare prices, features, and capabilities of different machines to find the best balance between cost and performance. Additionally, consider the long-term savings and benefits that the machine can bring to your production process.

By considering these factors, you can make an informed decision when choosing a composite floor deck roll forming machine that meets your production requirements and offers efficiency, quality, and reliability.
