Warehouse Shelf Upright Roll Forming Machine

Warehouse shelf upright roll forming machine also named Pallet Racking Roll Forming Machine (s) is developed to produce upright frame / upright racks.

Our intelligent roll forming machine could make various sizes of upright with thickness 1.5-3.0mm. Uncoiling, servo feeding, punching, roll forming, cutting etc process can be automatically realized on one line. Meantime, we have the roll forming machine to make box beam, step beam and shelf panels. All these are components of Pallet racking system.

Pallet racking is a cost-effective solution for storing palletized goods. Consisting of separate frames and beams that are available in a huge range of sizes, and secured with locking pins, Pallet Racking is easily configured to your needs whether led by pallet size or forklift type.

In warehouse pallet racking system, we are able to manufacture more machines like Box beam roll forming machine, step beam roll forming machine and shelf panel (box plate) roll forming machine etc.

We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your all requirements. Whichever line you choose, the quality of SUNWAY Machinery will ensure you obtain perfectly functional profiles.

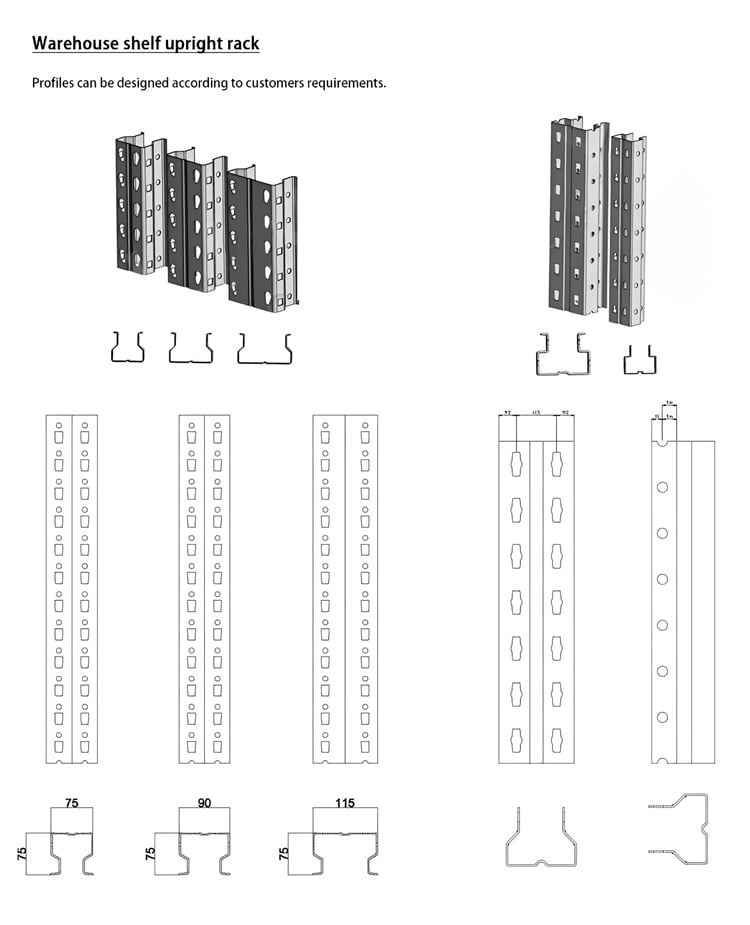

Profile Drawings

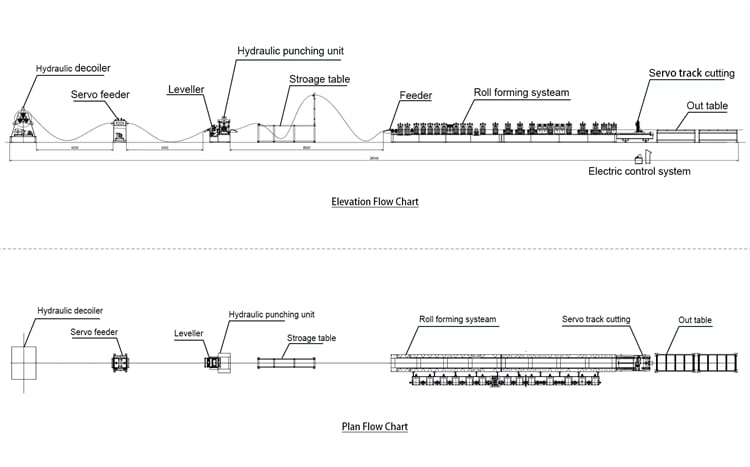

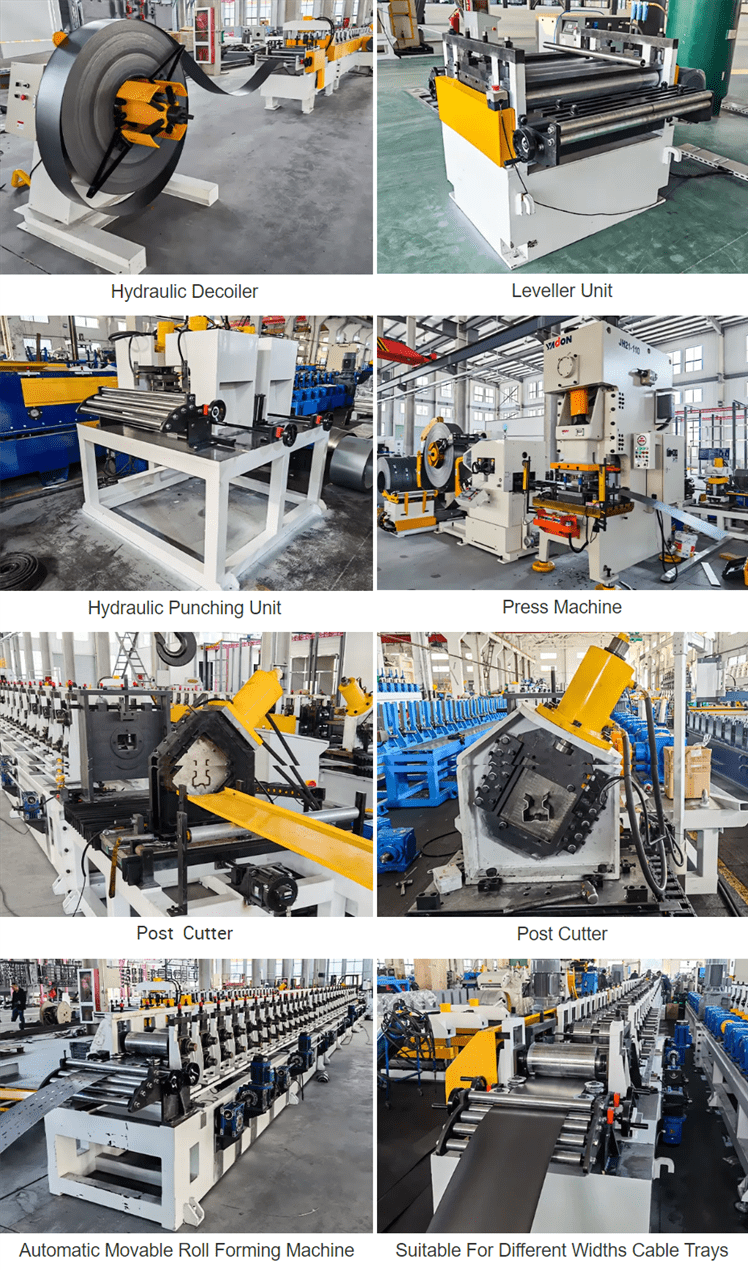

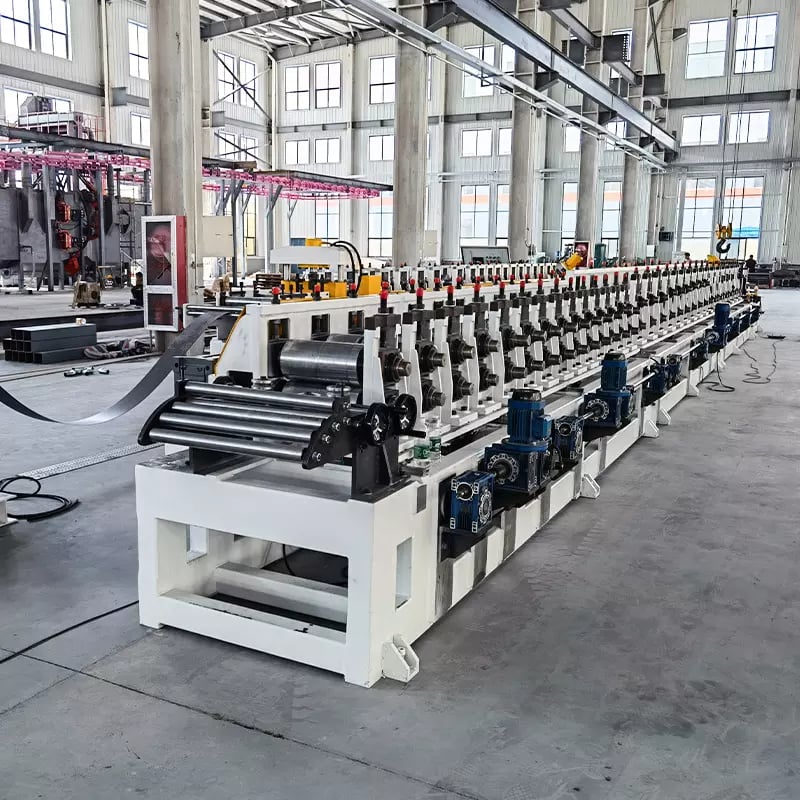

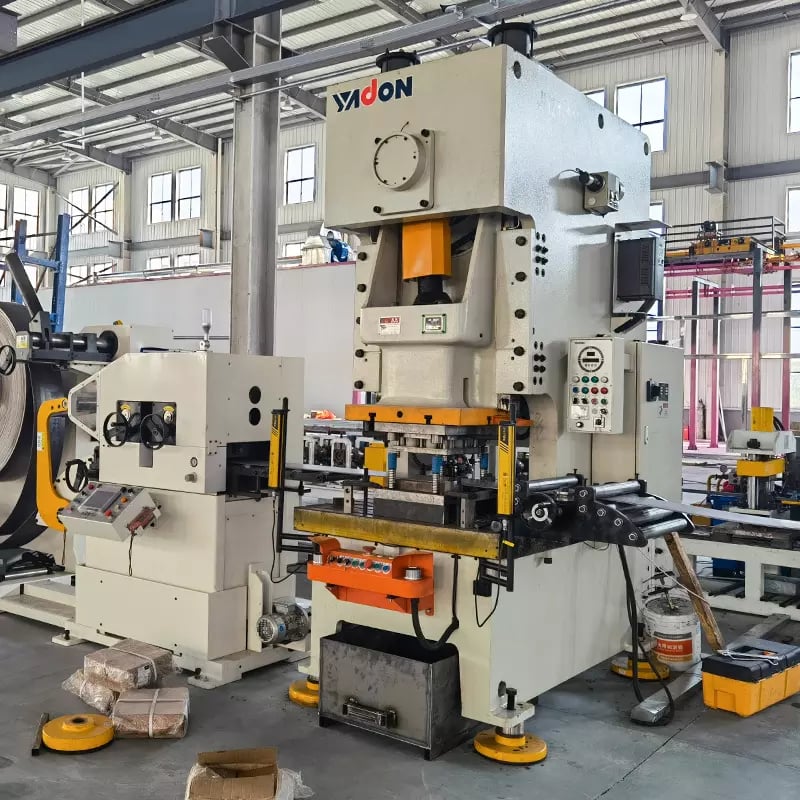

Production Line

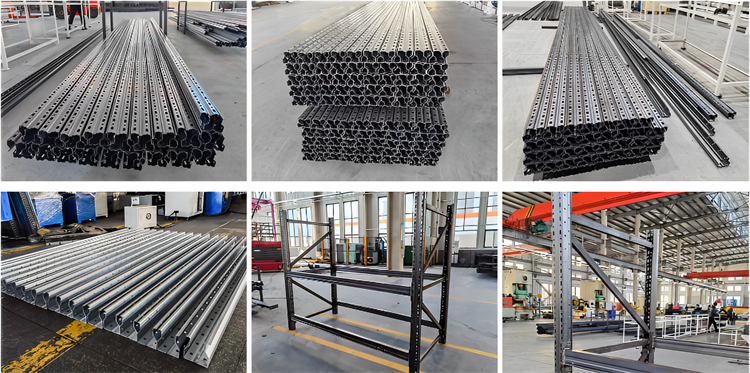

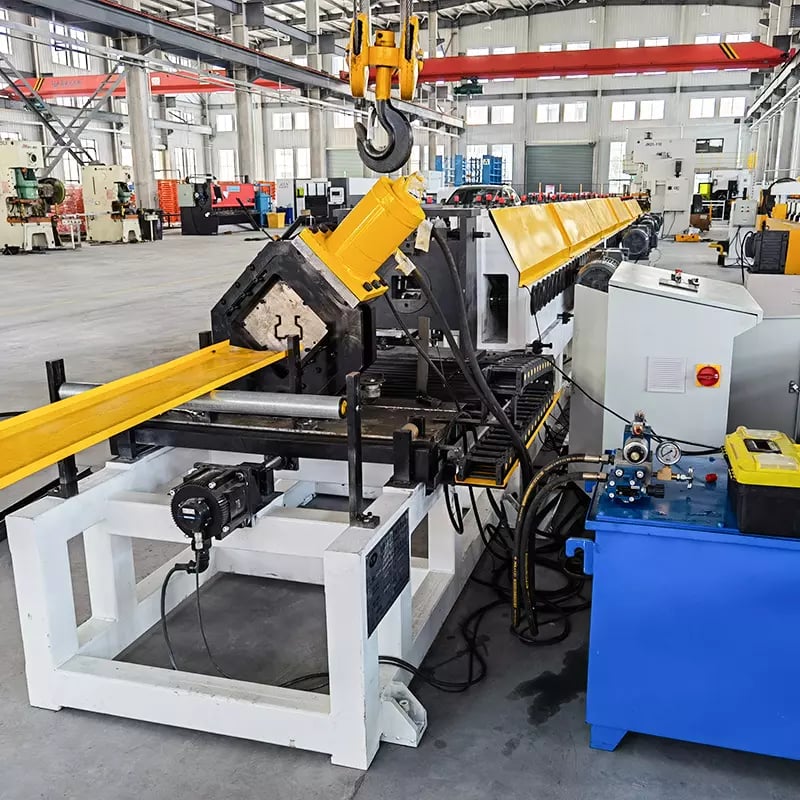

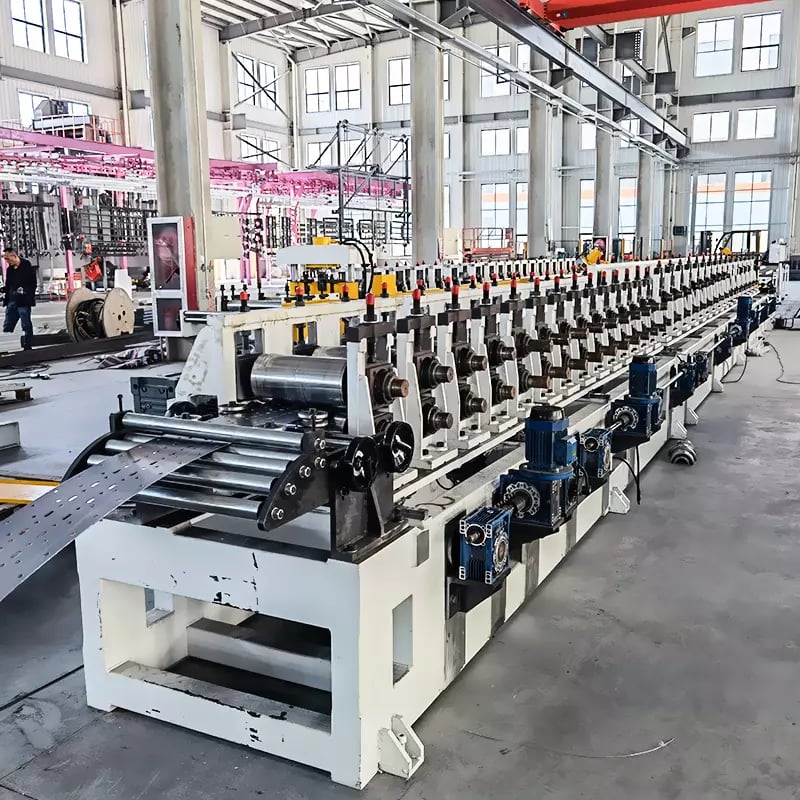

Product Details

Warehouse Shelf Upright Roll Forming Machine Parameters

Application

What Is Upright Roll Forming Machine?

An upright roll forming machine is a type of industrial machinery used in the metalworking industry for shaping and forming continuous metal strips into desired profiles. It is commonly used for producing structural components with a consistent cross-section, such as beams, channels, and panels.

The machine operates by passing the metal strip through a series of adjustable rollers arranged vertically. Each roller set is designed to gradually shape the strip by bending it to a specific contour. The rollers are positioned in a sequential order, with each set performing a specific bending or forming operation. As the metal strip passes through the machine, it undergoes a continuous shaping process until it reaches the desired profile.

Upright roll forming machines are known for their efficiency, accuracy, and high production rates. They are capable of handling various types of metals, including steel, aluminum, and stainless steel, with different thicknesses and widths. These machines are widely used in industries such as construction, automotive, aerospace, and manufacturing, where precise and consistent metal profiles are required for different applications.

How Do Rack Shelf Roll Forming Machine Work?

A rack shelf roll forming machine is a specialized type of roll forming machine used to produce rack shelving systems, which are commonly used for storage purposes in warehouses, retail stores, and industrial settings. Here is an overview of how a rack shelf roll forming machine typically works:

1. Material Loading: The process begins by loading a coil of sheet metal onto a decoiler, which holds the coil and feeds it into the machine. The sheet metal is usually steel or aluminum.
2. Straightening and Feeding: The sheet metal is then fed through a straightening unit that removes any coil set or curvature, ensuring a flat and consistent strip. The straightened strip is then guided into the roll forming machine.
3. Roll Forming: The roll forming machine consists of a series of roll tooling stations, typically arranged in a line. Each station has a set of rollers that gradually shape the metal strip into the desired profile. The rollers are precisely positioned and designed to bend and form the metal strip according to the rack shelf profile. The strip is guided through the machine, with each station contributing to the final shape of the profile.
4. Cutting: Once the desired length of the rack shelf profile is formed, a cutting mechanism is activated. It can be a flying cutoff, hydraulic shear, or other cutting method, which cuts the formed profile to the desired length.
5. Stacking and Output: The cut rack shelf profiles are then usually stacked or conveyed to an output area for further processing or packaging. The machine may include stacking or palletizing mechanisms to facilitate efficient handling of the finished profiles.

The entire process is typically automated, with the machine controlled by a computerized system that precisely controls the speed, positioning, and operation of the rollers and cutting mechanism. This automation allows for high production rates and consistent quality of the rack shelf profiles.

It’s important to note that the specific operation and features of a rack shelf roll forming machine can vary depending on the manufacturer and the requirements of the application.
