Carriage Board Roll Forming Machine
The metal carriage board roll forming machine is designed to produce truck side boards with different designs. normally thickness is from 1-3mm in ranges. Truck carriage board roll forming machine is an automatic machine, used for making carriage top, bottom, and side plate of truck carriage plate. It includes decoiler, leveller, roll former, welder, cutter, controlling system, hydraulic system, etc.
Design & Create
There are 20+ experienced engineers here to design various components.
QC & QA
Each step of production process is carried out in strict accordance with ISO standards.
The Metal carriage panel roll forming machine is designed to produce truck side boards with different designs. normally thickness is from 1-3mm in ranges.
Truck carriage board roll forming machine is an automatic machine, used for making carriage top, bottom, and side plate of truck carriage plate. It includes decoiler, leveller, roll former, welder, cutter, controlling system, hydraulic system, etc.
We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your all requirements. Whichever line you choose, the quality of SUNWAY Machinery will ensure you obtain perfectly functional profiles.
Profile Drawings

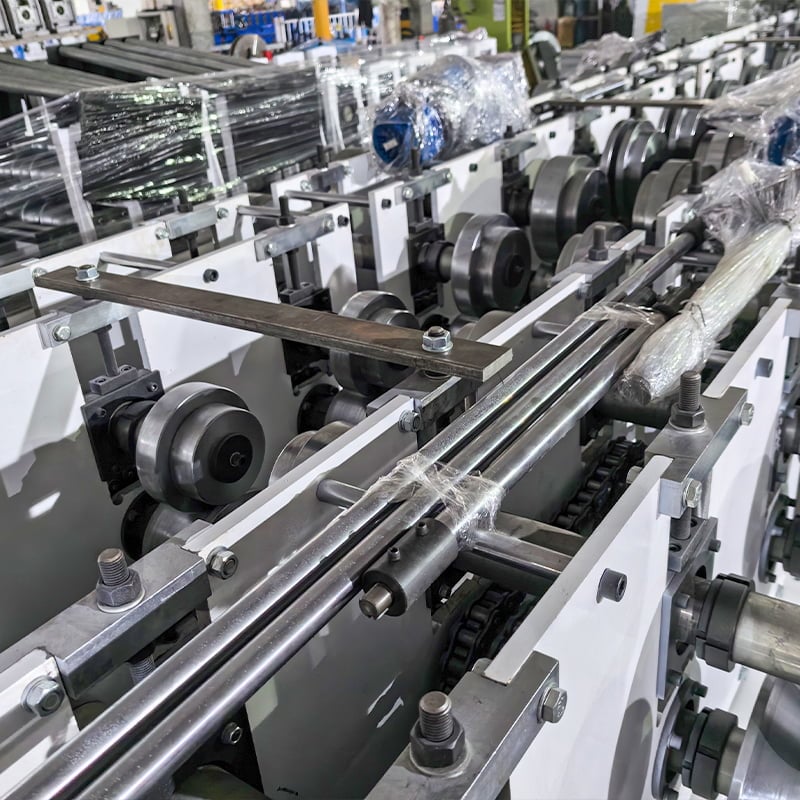

Production Line
Product Details
Product Parameters
| Carriage Board Roll Forming Machine | ||
|---|---|---|
| Machinable Material | A) Galvanized Steel | Thickness(MM): 1.0-3.0 Or As Per Customer |
| B) Cold Rolled Or Hot Rolled | ||
| C) Carbon Steel | ||
| Yield Strength | 250 – 550 Mpa | |
| Tensil Stress | G250 Mpa-G550 Mpa | |
| Profiles | As Per Customer | |
| Decoiler | Hydraulilc Decoiler | |
| Forming Station | About 24 Stations Or According To Profile Drawings | |
| Driving System | Gearbox Drive | * Chain Drive (Optional) |
| Machine Structure | Forged Iron Station | |
| Forming Speed | 0-10 (M/MIN) | * Not including cutting |
| Rollers’ Material | GCr 15 | * Cr12Mov (Optional) |
| Cutting System | Post-cutting | * Pre-cutting (Optional) |
| Frequency Changer Brand | Yaskawa | * Siemens (Optional) |
| PLC Brand | Panasonic | * Siemens (Optional) |
| Power Supply | 380V 50Hz | * Or According To Your Requirement |
| Machine Color | Industrial Blue | * Or According To Your Requirement |
Application
FAQ
Are you a manufacturer or trading company?
We are factory with professional production team and service consciousness just for exporting various types of laser machine.
Do you have after sales support?
Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.
What's your payment terms?
30% deposit is paid before production, the balance paid after inspection confirmation before shipment.
What can you do if the machine broken?
The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period, we will sell them at cost.
Will you deliver the right goods as ordered? How can I trust you?
Yes, we will. The core of our company culture is honesty and credit. Sunway is ALIBABA’s Gold supplier with BV assessment and CE certificate.
Do you sell only standard machines?
No, most of our machines are designed according to customers’ specifications, using famous brand components.
How to visit our company?
Fly to Shanghai airport: By high speed train from Shanghai to Wuxi (30 min),then we can pick up you.
