Highway Guardrail End Terminal Forming Machine

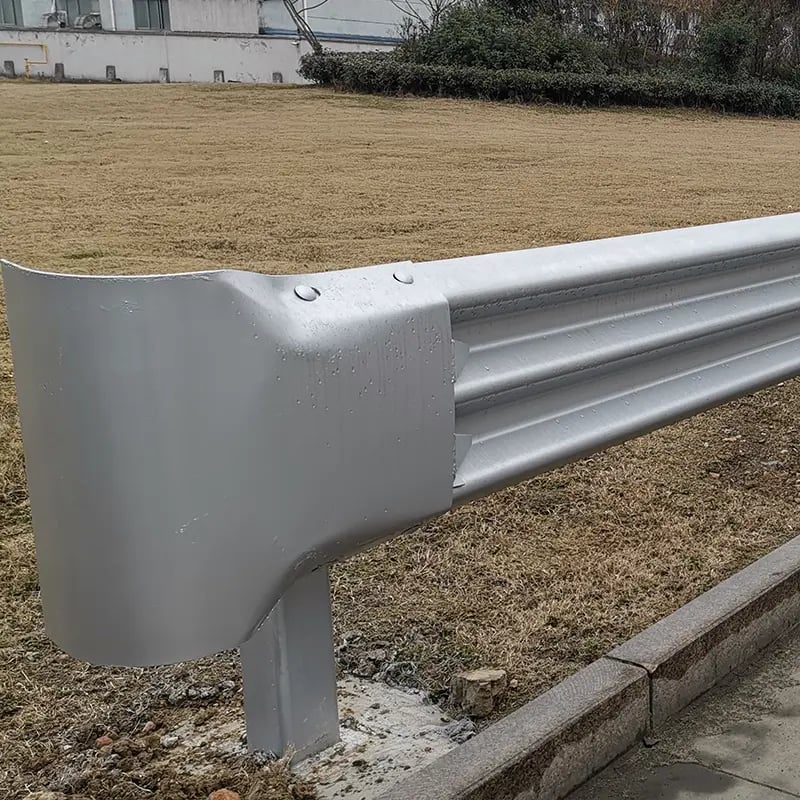

Highway guardrail end terminal forming machines are designed to reduce damage to the vehicle and protect the lives of its occupants. End terminal need to be installed at each opening or at the end of a section of road. According to different driving directions, the guardrail end has two kinds of upstream anchor end and downstream round end. Fishtail end is common terminal end with AASHTO M180 standard, it’s famous in the Middle East, Europe and American countries. The normal thickness is around 4mm. So we adopt forged iron stands and gearbox driving to make sure this machine can work longly in a stable situation in the following 20 years. The punching speed can up to 70 times/minute.
Design & Create
There are 20+ experienced engineers here to design various components.
QC & QA
Each step of production process is carried out in strict accordance with ISO standards.
Highway Guardrail End Terminals Punching LineThe guardrail end terminals are designed to reduce damage to the vehicle and protect the lives of its occupants. End terminal need to be installed at each opening or at the end of a section of road. According to different driving directions, the guardrail end has two kinds of upstream anchor end and downstream round end. Fishtail end is common terminal end with AASHTO M180 standard, it’s famous in Middle East, Europe and American countries. The normal thickness is around 4mm. So we adopt forged iron stands and gearbox driving to make sure this machine can work longly in a stable situation in the following 20 years. The punching speed can up to 70 times/minute.

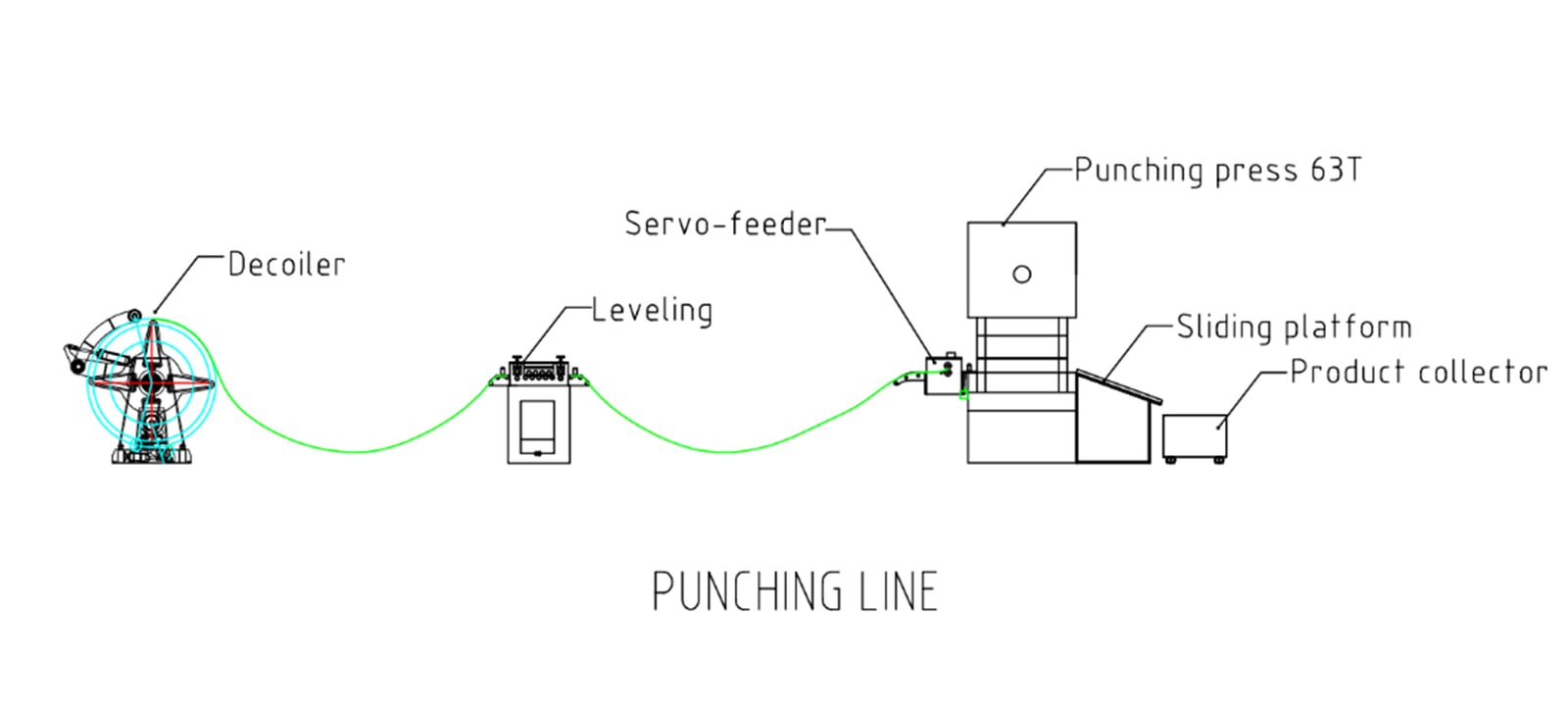

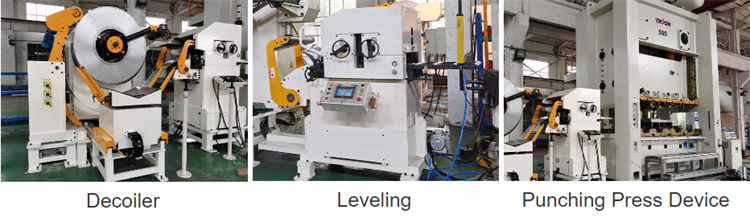

Hydraulic Decoiler-Leveling-Servo Feeder-Punching-Collector BoxThe fishtail terminal end, as the name implies, is a type of guardrail end shape like a fishtail, that provides a shallow termination for a steel roadway guardrail fences along low speed traffic flow. The fishtail terminal is available for both W-beam and thrie beam guardrail systems and is ideal for double rail and walkways. Fishtail end terminal (end treatment) are easy to install, and can be modified for custom installations. We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your all requirements. Whichever line you choose, the quality of SUNWAY Machinery will ensure you obtain perfectly functional profiles.

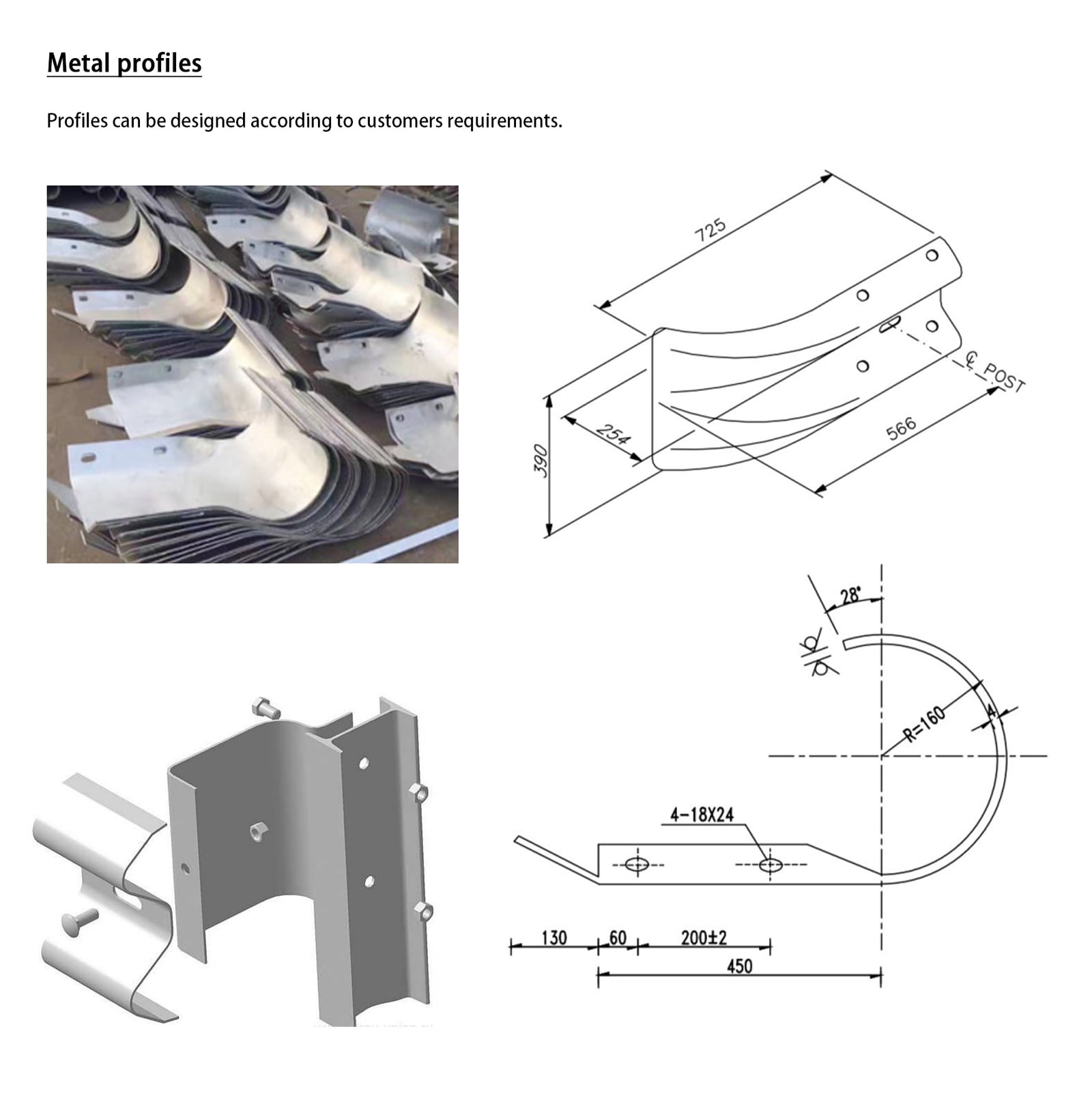

Profile Drawings

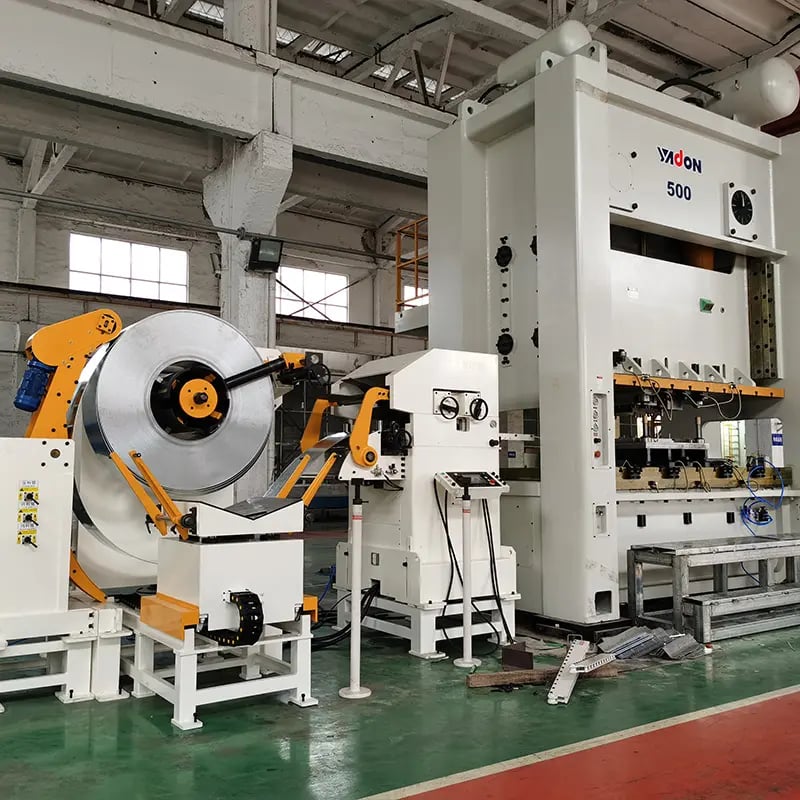

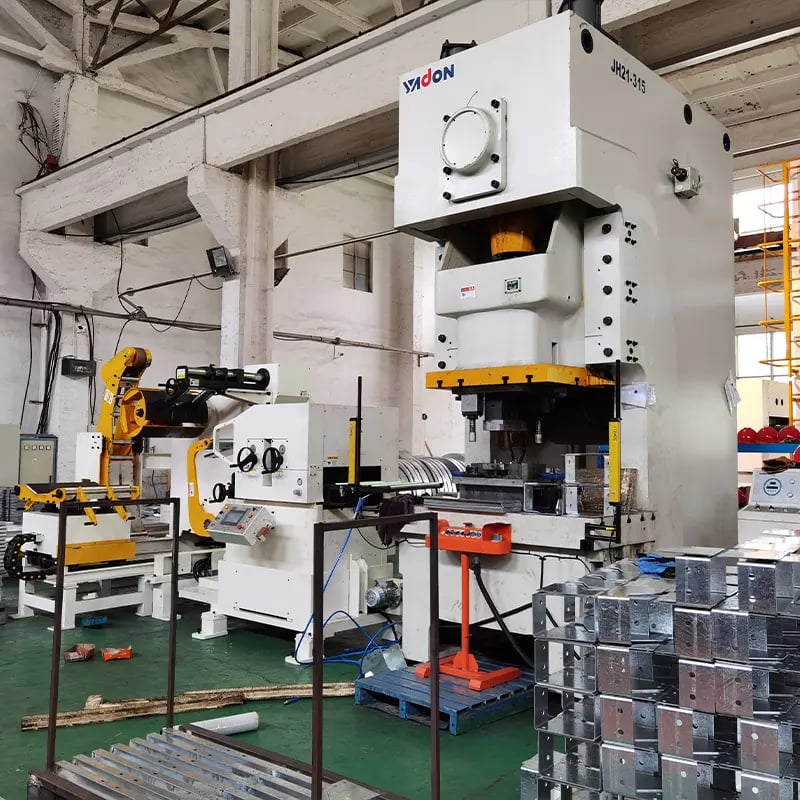

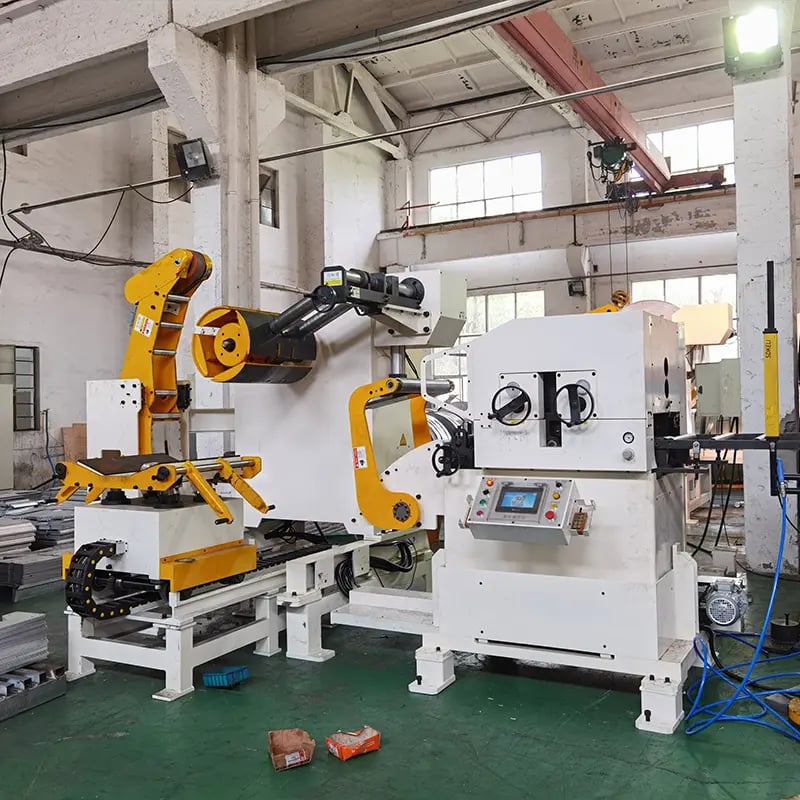

Production Line

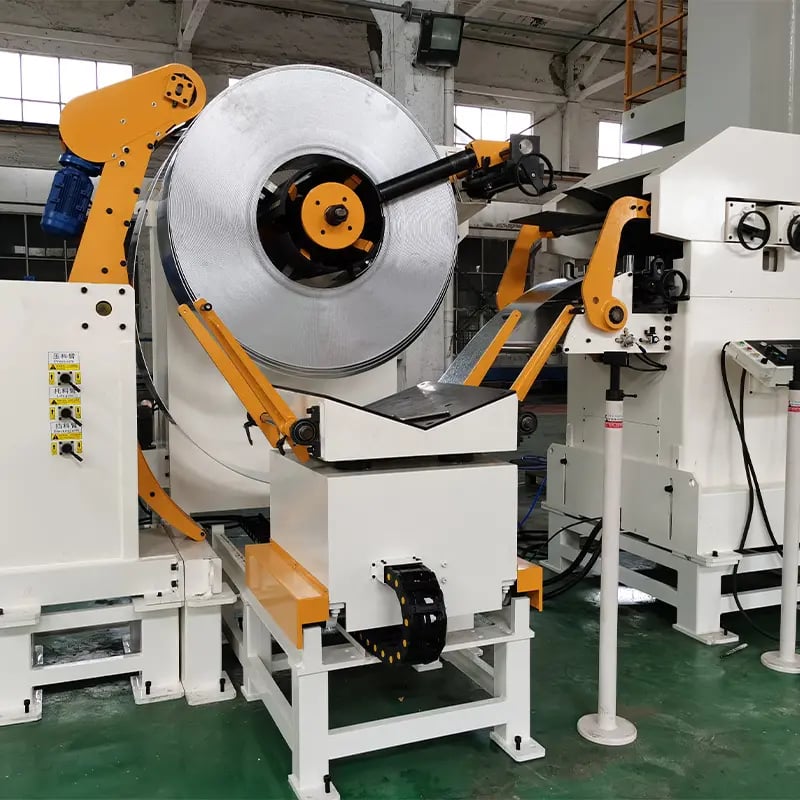

Product Details
Product Parameters
| Highway Guardrail End Terminals Punching Line | ||
|---|---|---|
| Machinable Material | A) Galvanized Steel | Thickness(MM): 3-6 mm Or According To Customer |
| B) Carbon Steel | ||
| Yield Strength | 250 – 550 Mpa | |
| Tensil Stress | G250 Mpa-G550 Mpa | |
| Guard Rail Type | 2 Waves Or 3 Waves | |
| Decoiler | Hydraulilc Decoiler | |
| Leveller | Levelling Rollers | |
| Feeder | Servo Feeder | |
| Punching System | Press Machine With Mould | |
| Power Supply | 380V 50Hz 3ph | * Or According To Your Requirement |
| Machine Color | Industrial Blue | * Or According To Your Requirement |

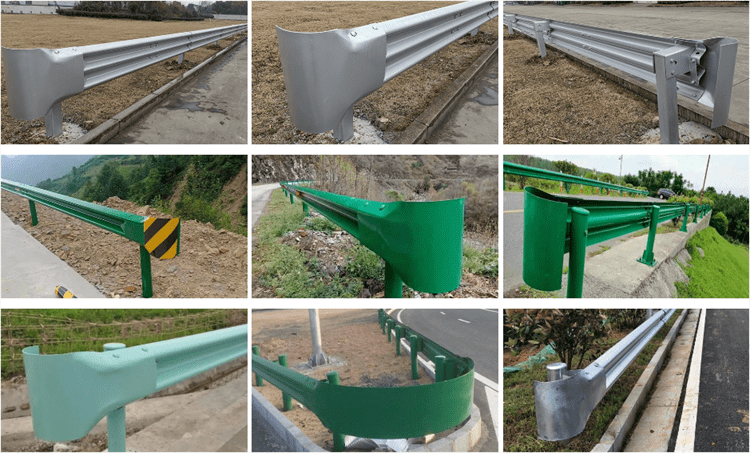

Application
FAQ
Are you a manufacturer or trading company?
We are factory with professional production team and service consciousness just for exporting various types of laser machine.
Do you have after sales support?
Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.
What's your payment terms?
30% deposit is paid before production, the balance paid after inspection confirmation before shipment.
What can you do if the machine broken?
The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period, we will sell them at cost.
Will you deliver the right goods as ordered? How can I trust you?
Yes, we will. The core of our company culture is honesty and credit. Sunway is ALIBABA’s Gold supplier with BV assessment and CE certificate.
Do you sell only standard machines?
No, most of our machines are designed according to customers’ specifications, using famous brand components.
How to visit our company?
Fly to Shanghai airport: By high speed train from Shanghai to Wuxi (30 min),then we can pick up you.
