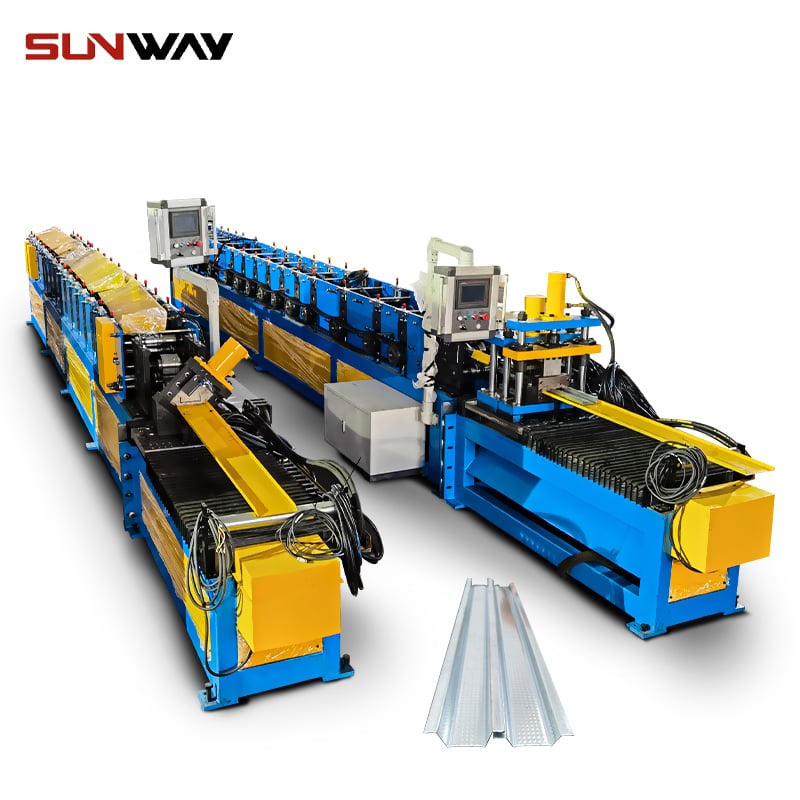

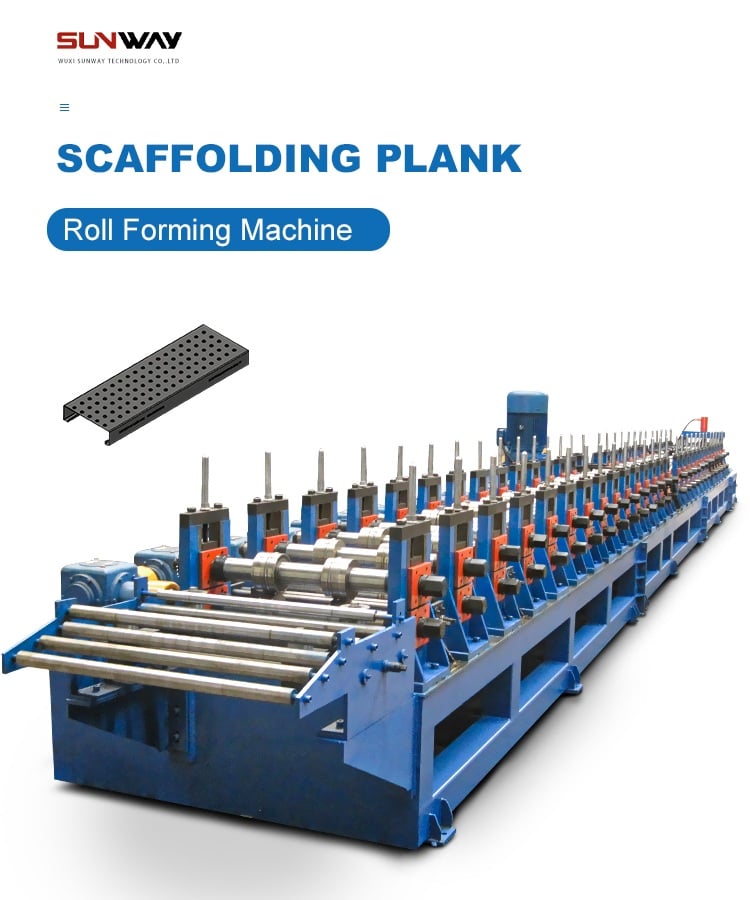

Scaffolding Plank Roll Forming Machine

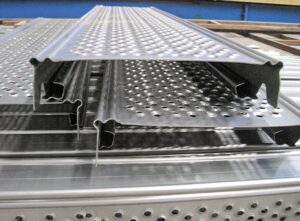

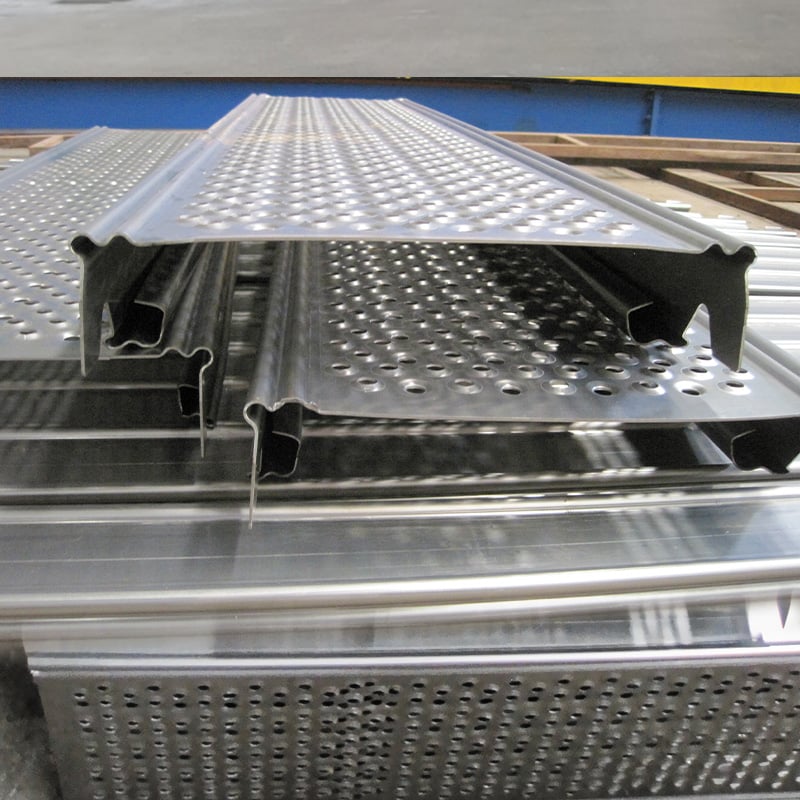

Scaffolding plank roll forming machine also named scaffolding board roll forming machine which is used to produce scaffolding planks or boards.
Scaffolding, also called scaffold or staging, it is a temporary structure used to support a work crew and materials to aid in the construction, maintenance and repair of buildings, bridges and all other man-made structures. Scaffolds are widely used on site to get access to heights and areas that would be otherwise hard to get to. Unsafe scaffolding has the potential to result in death or serious injury. Scaffolding is also used in adapted forms for formwork and shoring, grandstand seating, concert stages, access/viewing towers, exhibition stands, ski ramps, half pipes and art projects.
Design & Create
There are 20+ experienced engineers here to design various components.
QC & QA
Each step of production process is carried out in strict accordance with ISO standards.
Scaffolding plank roll forming machine also named scaffolding board roll forming machine which is used to produce scaffolding planks or boards.
Scaffolding, also called scaffold or staging, it is a temporary structure used to support a work crew and materials to aid in the construction, maintenance and repair of buildings, bridges and all other man-made structures. Scaffolds are widely used on site to get access to heights and areas that would be otherwise hard to get to. Unsafe scaffolding has the potential to result in death or serious injury. Scaffolding is also used in adapted forms for form work and shoring, grandstand seating, concert stages, access/viewing towers, exhibition stands, ski ramps, half pipes and art projects.

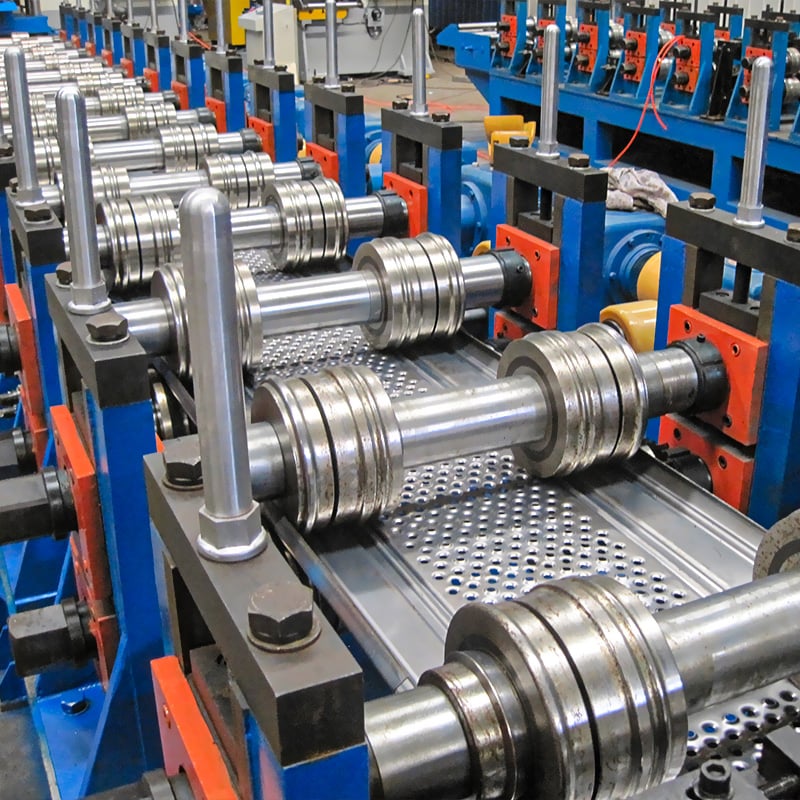

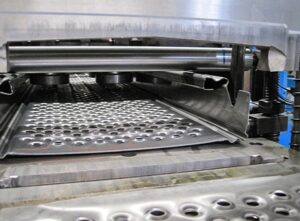

Our intelligent Scaffolding plank roll forming machine could make the different scaffolding planks according to your profile. Uncoiling, servo feeding, punching, roll forming, cutting etc. process can be automatically realized on one line.
We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your all requirements. Whichever line you choose, the quality of SUNWAY Machinery will ensure you obtain perfectly functional profiles.

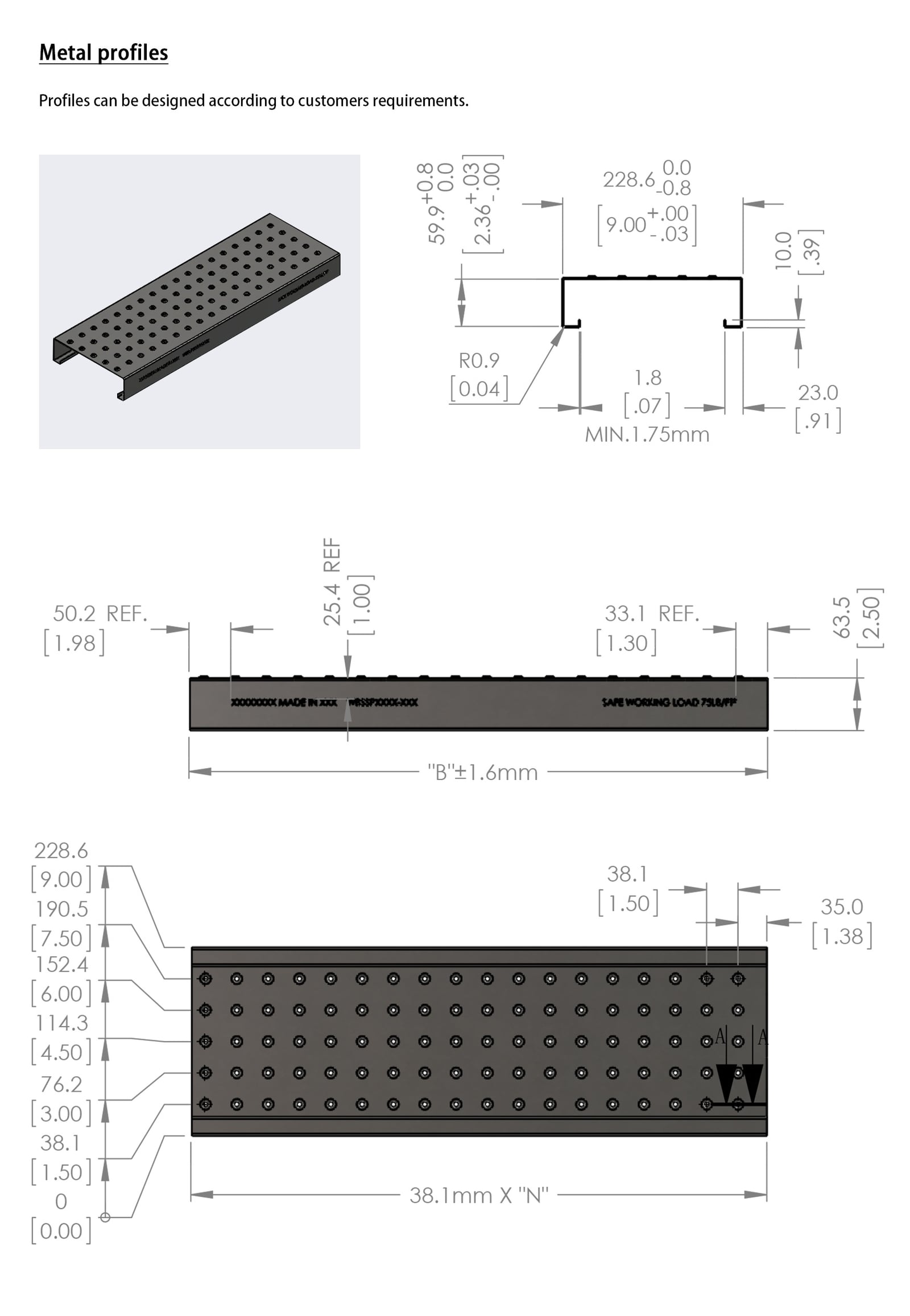

Profile Drawings

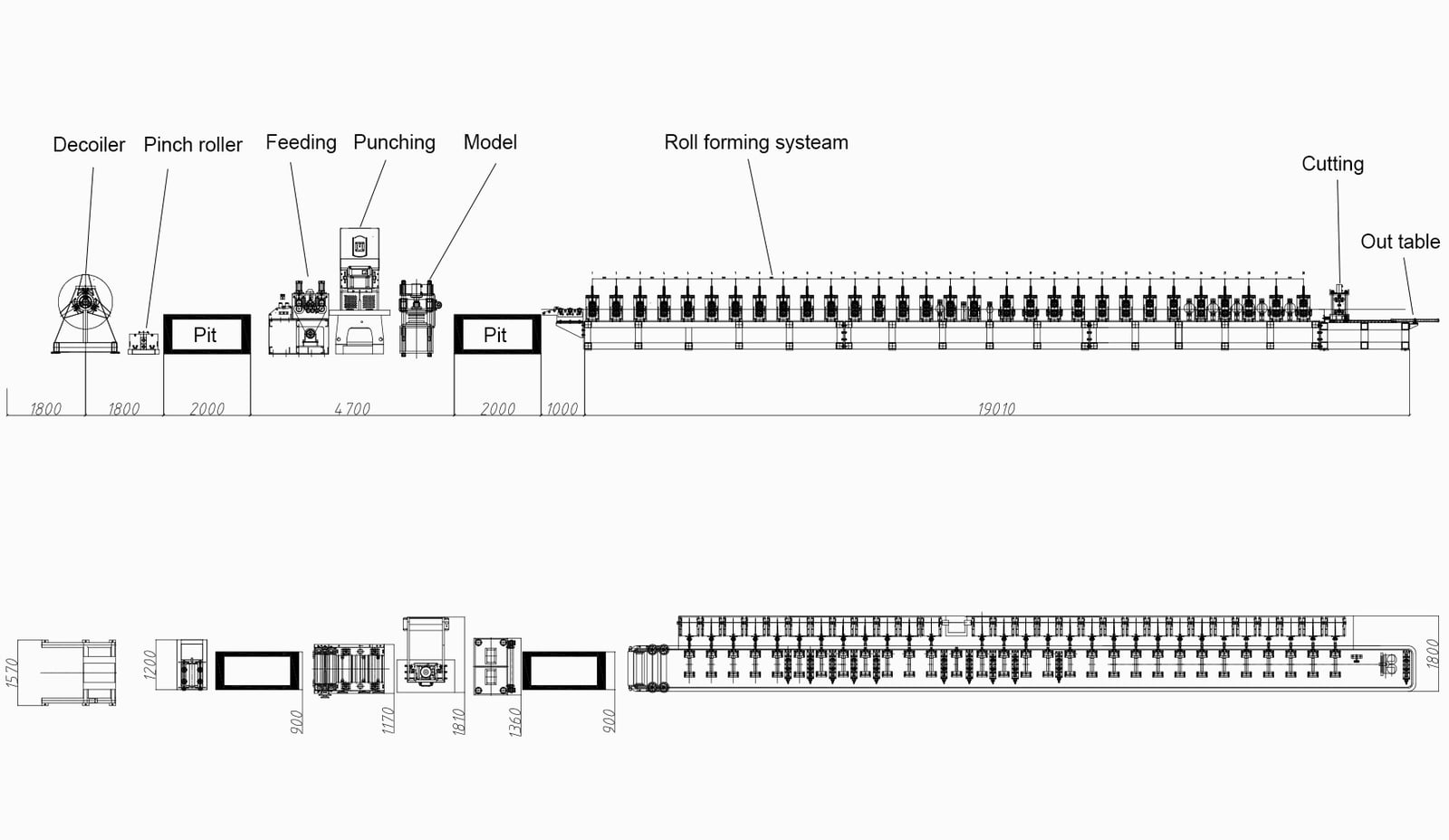

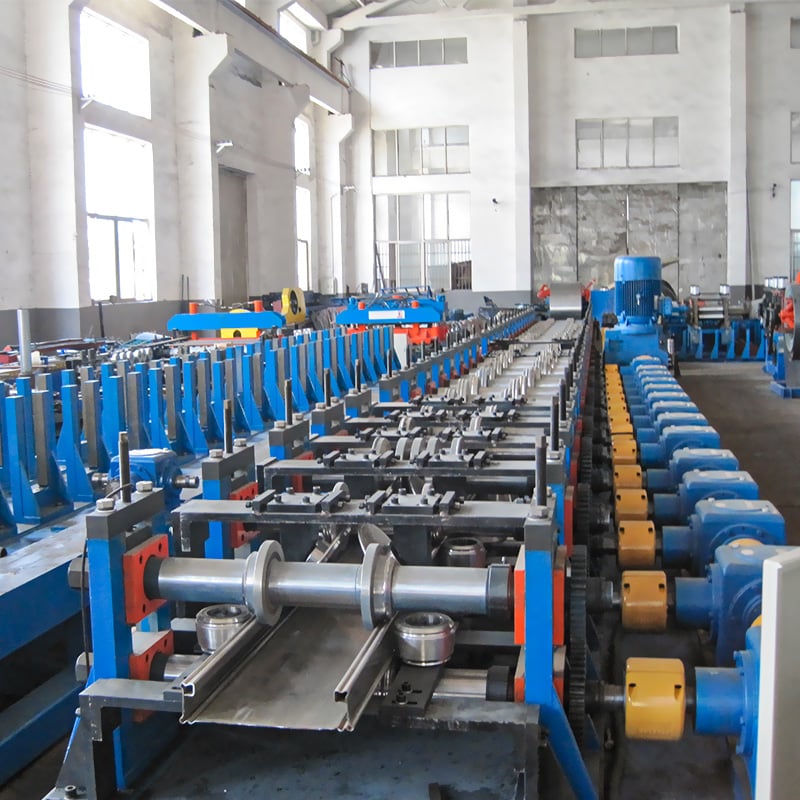

Production Line

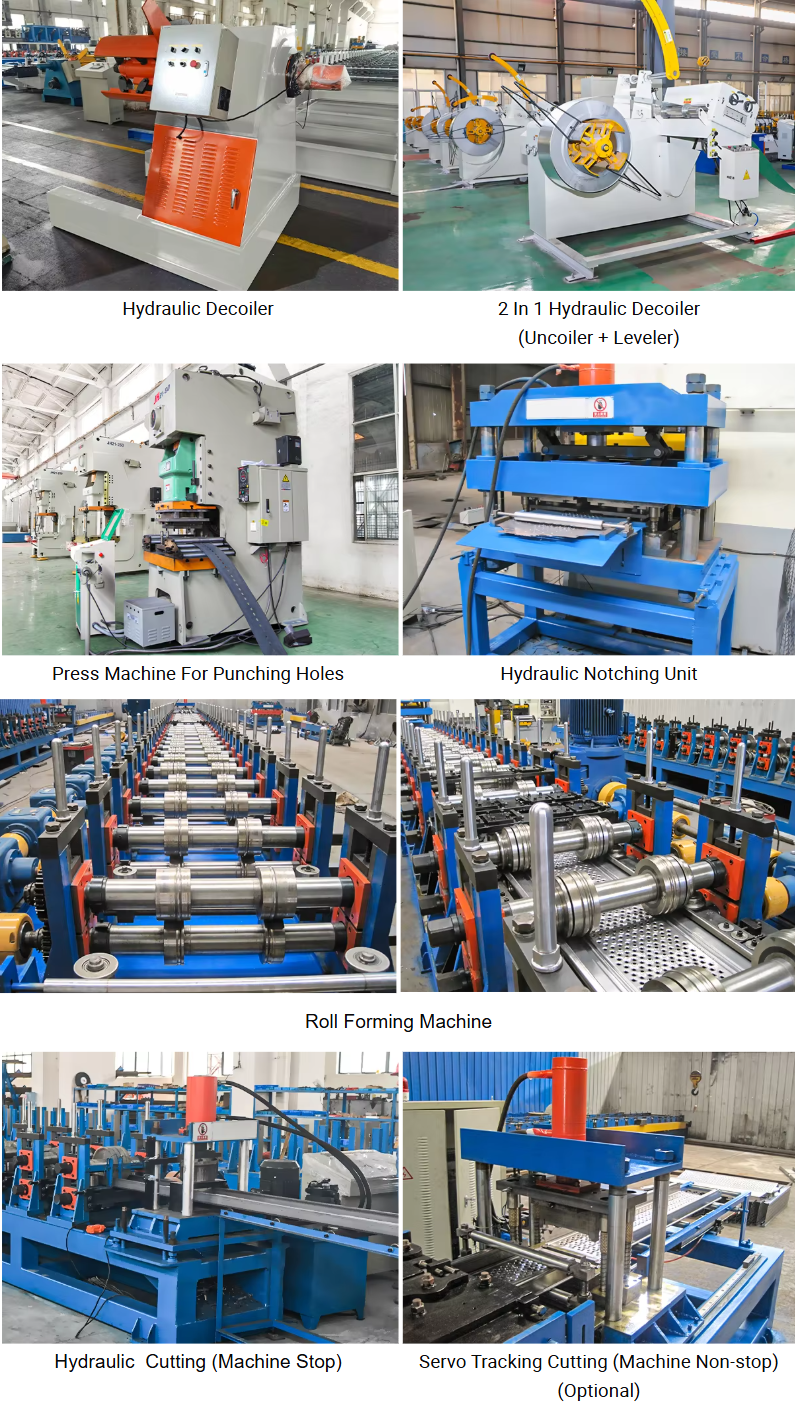

Product Details
Product Parameters
| Scaffolding Plank Roll Forming Machine | ||
|---|---|---|
| Machinable Material | A) Galvanized Steel | Thickness(MM): 1.5-2.0, 2.0-2.5, up to 3mm |
| B) Mild Steel | ||
| Yield strength | 250 – 550 Mpa | |
| Tensil stress | G250 Mpa-G550 Mpa | |
| Decoiler | Manual Decoiler | * Hydraulic Decoiler (Optional) |
| Punching System : | Hydraulic Punching Station | * Punching Press (Optional) |
| Forming Station | About 20 Stands | * According To Your Profile Drawings |
| Driving System | Chain Drive | |
| Machine Structure | Wall Panel Station | * Cast Iron Stands (Optional) |
| Forming Speed | 5-15 (M/MIN) | * According To Your Profile Drawings |
| Rollers’ Material | GCr15 | * Cr12 (Optional) |
| Cutting System | Hydraulic Cutting | * Servo Tracking Cutter (Optional) |
| Frequency Changer Brand | Yaskawa | * Siemens (Optional) |
| PLC Brand | Panasonic | * Siemens (Optional) |
| Power Supply | 380V 50Hz 3ph | * Or According To Your Requirement |
| Machine Color | Industrial Blue | * Or According To Your Requirement |

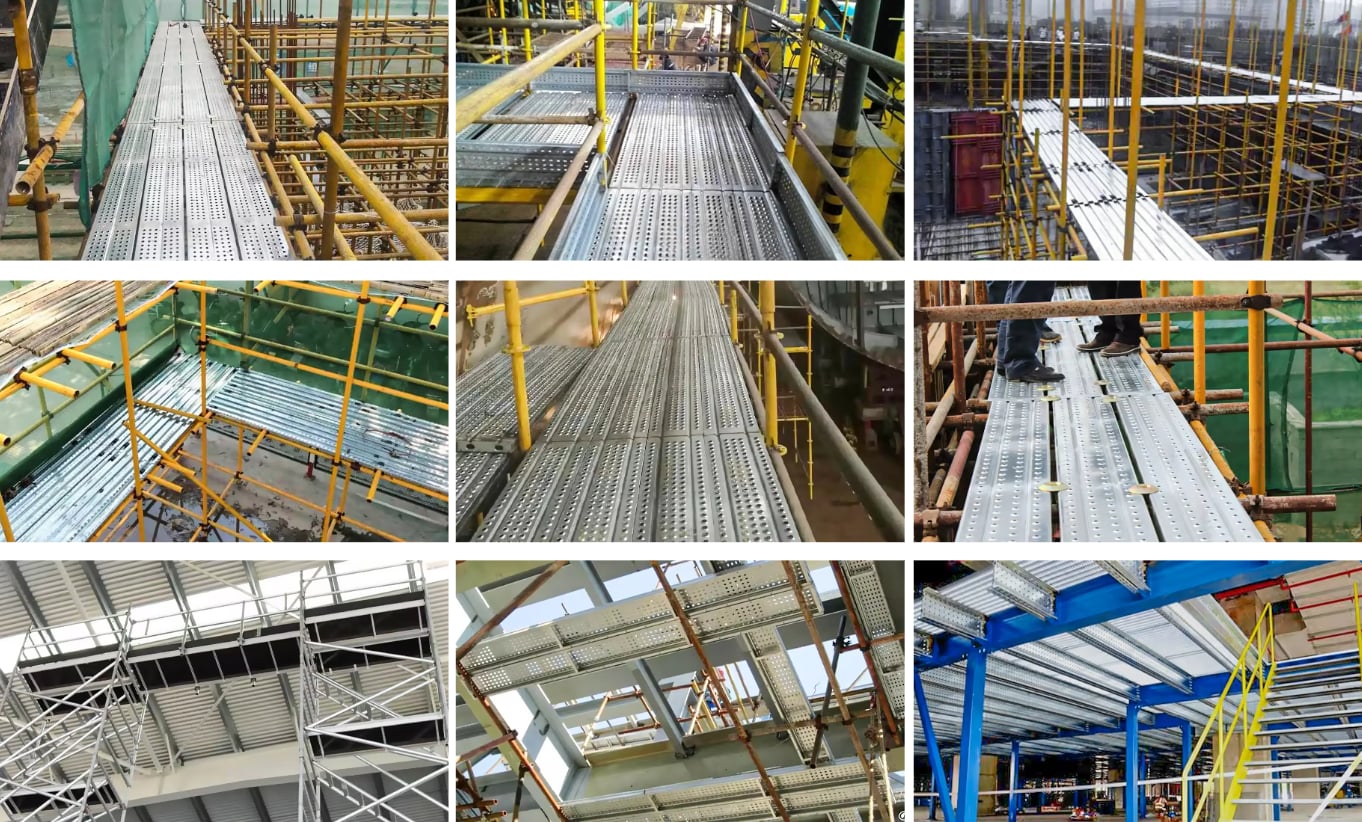

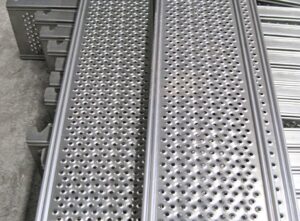

Application
FAQ
Are you a manufacturer or trading company?
We are factory with professional production team and service consciousness just for exporting various types of laser machine.
Do you have after sales support?
Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.
What's your payment terms?
30% deposit is paid before production, the balance paid after inspection confirmation before shipment.
What can you do if the machine broken?
The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period, we will sell them at cost.
Will you deliver the right goods as ordered? How can I trust you?
Yes, we will. The core of our company culture is honesty and credit. Sunway is ALIBABA’s Gold supplier with BV assessment and CE certificate.
Do you sell only standard machines?
No, most of our machines are designed according to customers’ specifications, using famous brand components.
How to visit our company?
Fly to Shanghai airport: By high speed train from Shanghai to Wuxi (30 min),then we can pick up you.
