Multi Profiles Roll Forming Machine

Multi profiles roll forming machine also named 2 in 1 or 3 in 1 or 4 in 1 etc Purlin Roll Forming Machine is designed to make different profiles on one machine which can save space and cost. With the development of various profiles production requirements, customers prefer to buy one machine but can produce 2 purines or more. Then this machine is the best choice. There is no need to change rollers or cutters once producing different profiles. Meantime, punching unit is also be available for each profile.

Global Service

Our professional foreign traders will satisfy global businessman as customers' will.

Design & Create

There are 20+ experienced engineers here to design various components.

QC & QA

Each step of production process is carried out in strict accordance with ISO standards.

Multi profiles roll forming machine also named 2 in 1 or 3 in 1 or 4 in 1 etc Purlin Roll Forming Machine is designed to make different profiles on one machine which can save space and cost.

With the development of various profiles production requirements, customers prefer to buy one machine but can produce 2 purines or more. Then this machine is the best choice. There is no need to change rollers or cutters once producing different profiles. Meantime, punching unit is also be available for each profile.

SUNWAY makes different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your all requirements. Whichever line you choose, the quality of SUNWAY Machinery will ensure you obtain perfectly functional profiles.

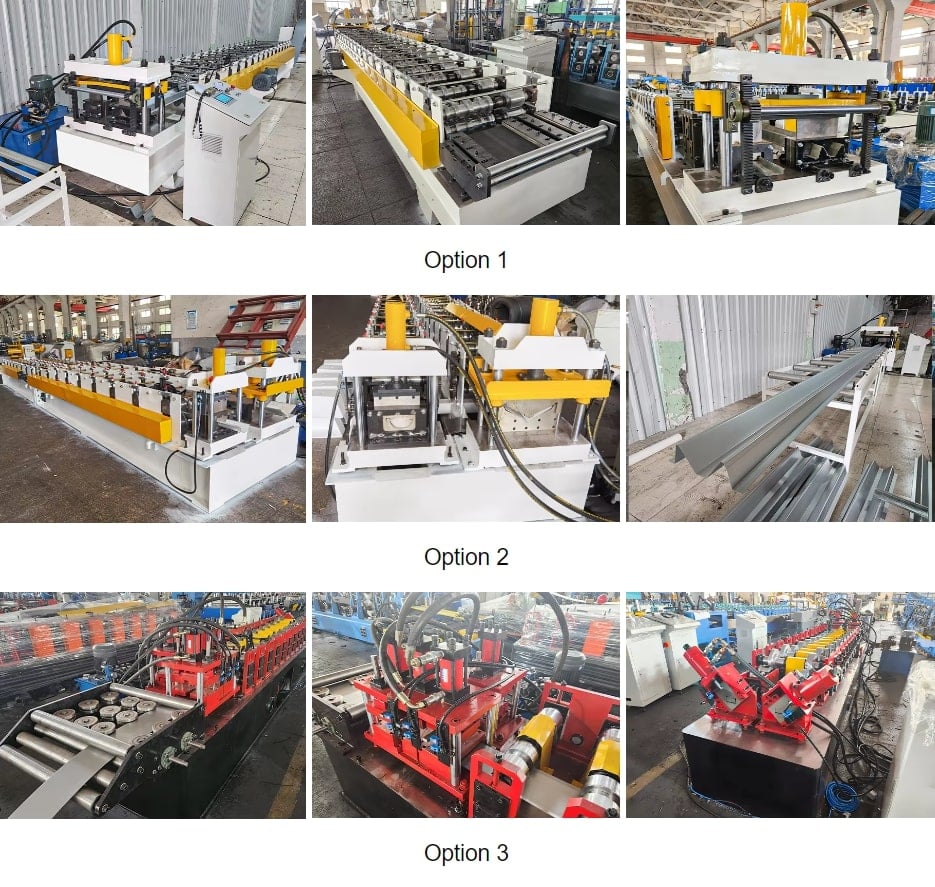

Production Line

Product Details

Product Parameters

Auto Size Changeable CZ Purlin Roll Forming Machine
Machinable Material	A) Galvanized Coil	Thickness(MM): 1.5-3 or as per customer
B) Carbon Steel Coil
Yield Strength	250 – 550 Mpa
Tensil Stress	G350 Mpa-G550 Mpa
Decoiler	Manual Decoiler	* Hydraulic Decoiler (Optional)
Punching System	Hydraulic Punching Station	* Pre-punch / Post Punch (Optional)
Forming Station	As Per Profiles
Driving System	Chain Drive	* Gearbox Drive (Optional)
Machine Structure	Wall Panel Station	* Forged Iron Station (Optional)
Forming Speed	10-20 (M/MIN)	* Or According To Your Requirement
Rollers’ Material	GCr 15	* Cr12Mov (Optional)
Cutting System	Pre-cutting	* Post- universal Cutting (Optional)
Profiles	2 in 1	* 3 in 1 , 4 in 1
Frequency Changer Brand	Yaskawa	* Siemens (Optional)
PLC Brand	Panasonic	* Siemens (Optional)
Power Supply	380V 50Hz	* Or According To Your Requirement
Machine Color	Industrial Blue	* Or According To Your Requirement

FAQ

Are you a manufacturer or trading company?

We are factory with professional production team and service consciousness just for exporting various types of laser machine.

Do you have after sales support?

Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.

What's your payment terms?

30% deposit is paid before production, the balance paid after inspection confirmation before shipment.

What can you do if the machine broken?

The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period, we will sell them at cost.

Will you deliver the right goods as ordered? How can I trust you?

Yes, we will. The core of our company culture is honesty and credit. Sunway is ALIBABA’s Gold supplier with BV assessment and CE certificate.

Do you sell only standard machines?

No, most of our machines are designed according to customers’ specifications, using famous brand components.

How to visit our company?

Fly to Shanghai airport: By high speed train from Shanghai to Wuxi (30 min),then we can pick up you.
