Cable tray roll forming machine is commonly used to make different kinds of cable trays, which is widely used in electrical fields, decorations, industrial constructions etc. According to the final cable products, it can be conveniently divided into three types: Non-hole trough cable tray, cable ladder, and perforated channel cable tray. This cable tray roll forming machine could produce all these different types of cable trays with different raw materials like: hot-dip galvanized steel, pre-galvanized steel, hot-rolled and cold-rolled steel, stainless steel and aluminum. Thickness range of material is 0.6mm-1.2mm or 1-2mm even more. In Electrical & energy Industries, we are able to manufacture more related machines like Solar strut channel roll forming machine, DIN rail roll forming machine and Electrical Enclosure Box roll forming machine etc. We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your all requirements. Whichever line you choose, the quality of SUNWAY Machinery will ensure you obtain perfectly functional profiles.

Cable Tray Roll Forming Machine Profile Drawings

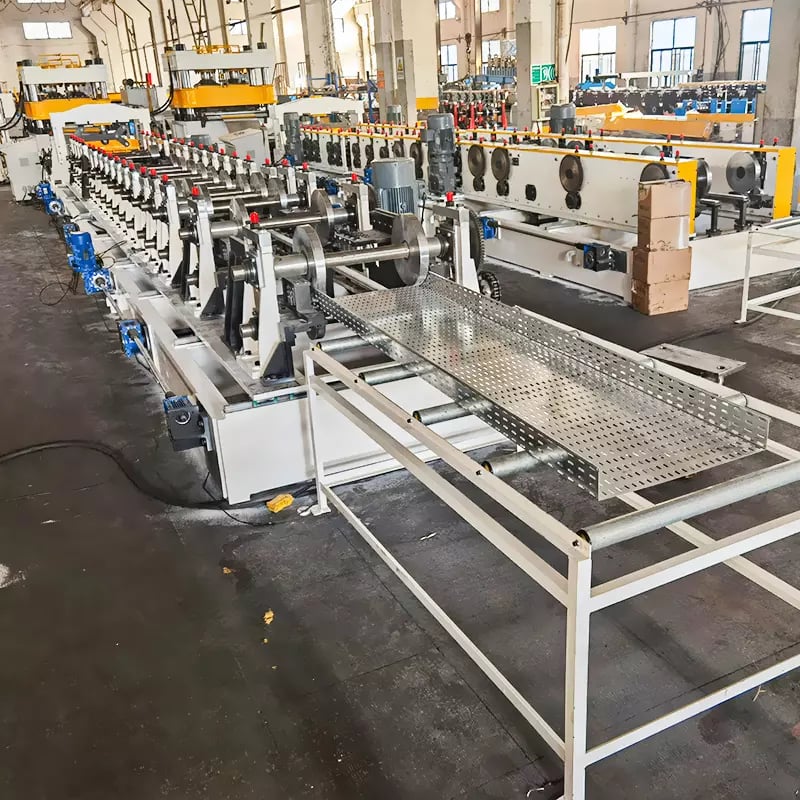

Cable Tray Roll Forming Machine Production Line

Product Details

Cable Tray Roll Forming Machine Parameters

Application

With the features of green, solid, economical, durable, fast easy to install and good-looking, double in rollC-shaped steel photovoltaic bracket and other steel building materials are used more and more widely. It is suitable for various light steel structure construction, shelves, ceiling frames, and so on.

What Is Cable Tray Roll Forming Machine

A cable tray roll forming machine is a specialized industrial machine designed to manufacture cable trays. Cable tray roll forming machine also named cable tray making machine. Cable trays are structural components used in electrical installations to support and organize cables, wires, and other electrical equipment. Cable trays provide a safe and efficient way to route and protect electrical wiring in buildings, industrial facilities, and infrastructure projects.

Here’s an overview of how a cable tray making machine typically works:

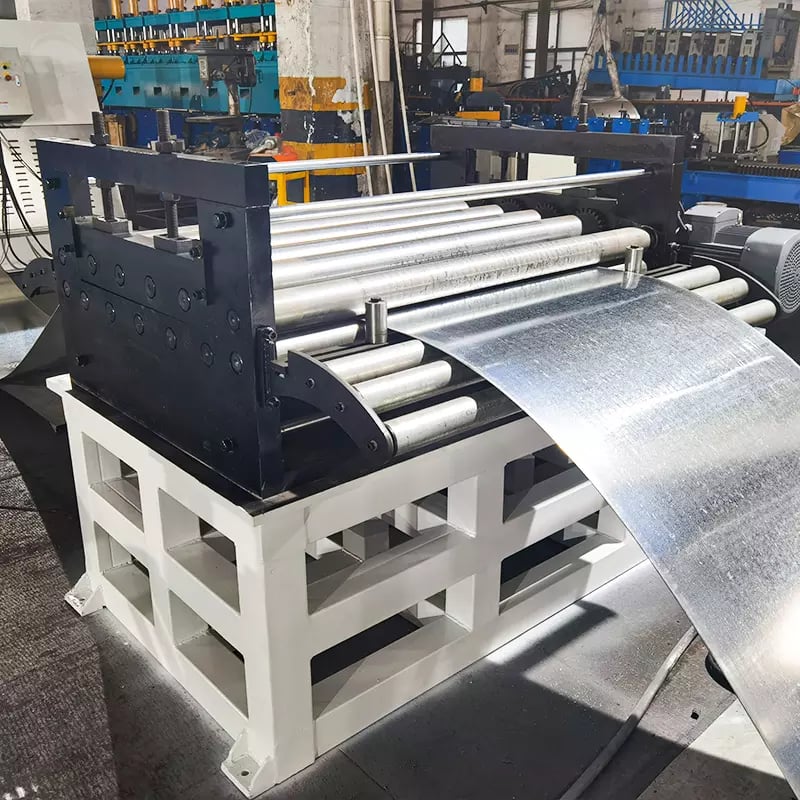

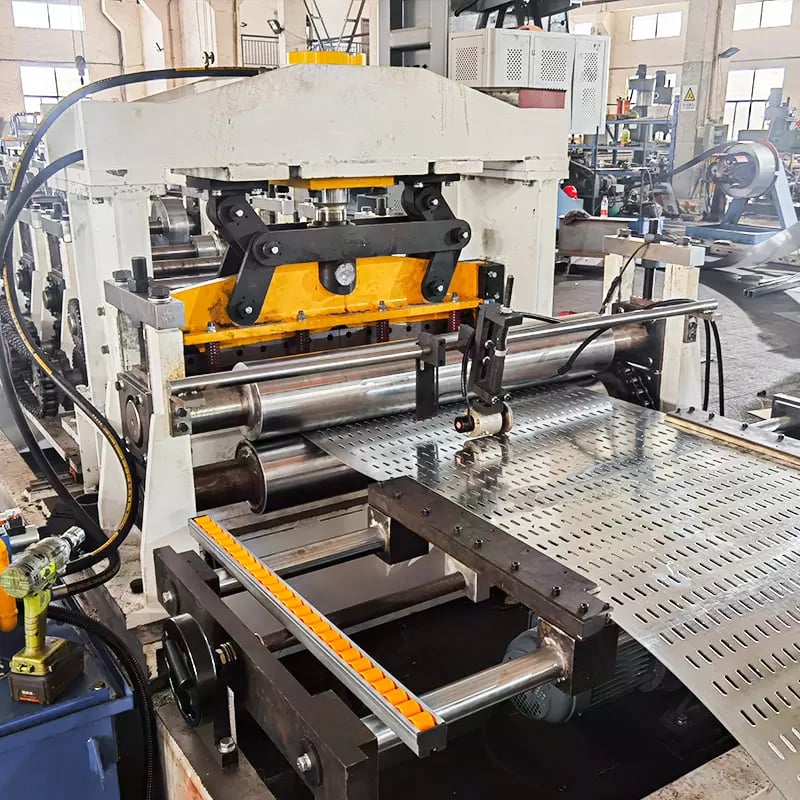

1. Material Feeding: The machine begins by feeding a metal strip, usually made of galvanized steel or aluminum, into the roll forming line. The strip is often supplied in coil form and is unwound and guided into the machine for further processing.

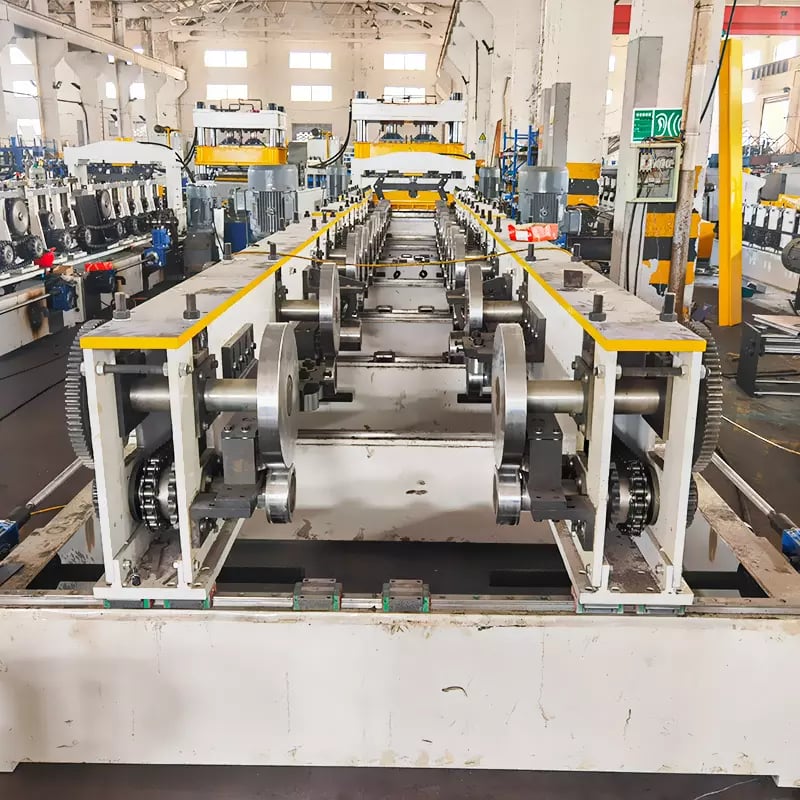

2. Roll Forming: The metal strip passes through a series of rollers and roll forming stations. Each set of rollers gradually shapes the strip into the desired profile of the cable tray. The rollers are specifically designed to create the specific features and dimensions required, such as the sidewalls, rungs, and mounting holes of the cable tray.
3. Cutting: Once the metal strip has been fully formed into cable tray sections, a cutting mechanism is employed to separate the
4. Hole Punch
5. Length Measurement and Stacking: After the cutting and hole punching processes, the cable tray sections are typically measured for length using sensors or measurement devices. The sections are then stacked or collected for packaging or further processing.

Cable tray roll forming machines often feature computer-controlled systems to ensure accurate and consistent shaping of the metal strip. These machines may also have features such as automatic material feeding, adjustable roller sets, and control panels for easy operation and monitoring.

By utilizing a cable tray making machine, manufacturers can efficiently produce high-quality cable trays in large quantities. These cable trays provide a reliable and organized solution for cable management in electrical installations, ensuring safety and ease of maintenance.

Does Galvanized Cable Tray Making Machine Belong To Cable Tray Roll Forming Machine?

Yes, a galvanized cable tray making machine belongs to the category of cable tray roll forming machines. The term “galvanized” refers to the process of coating the metal, typically steel, with a layer of zinc to provide corrosion resistance and durability. Galvanized cable trays are widely used in electrical installations and industrial applications due to their superior protection against rust and environmental conditions.

A galvanized cable tray making machine is specifically designed to manufacture cable trays using galvanized steel strips. The machine follows the same basic principles as a cable tray roll forming machine, which includes feeding the metal strip, roll forming the desired profile of the cable tray, cutting and punching holes or slots, and length measurement and stacking.

The key distinction of a galvanized cable tray making machine is that it is equipped to handle galvanized steel strips and ensure the proper coating of zinc during the manufacturing process. This may involve additional steps such as surface cleaning or zinc coating application to achieve the desired galvanized finish.
