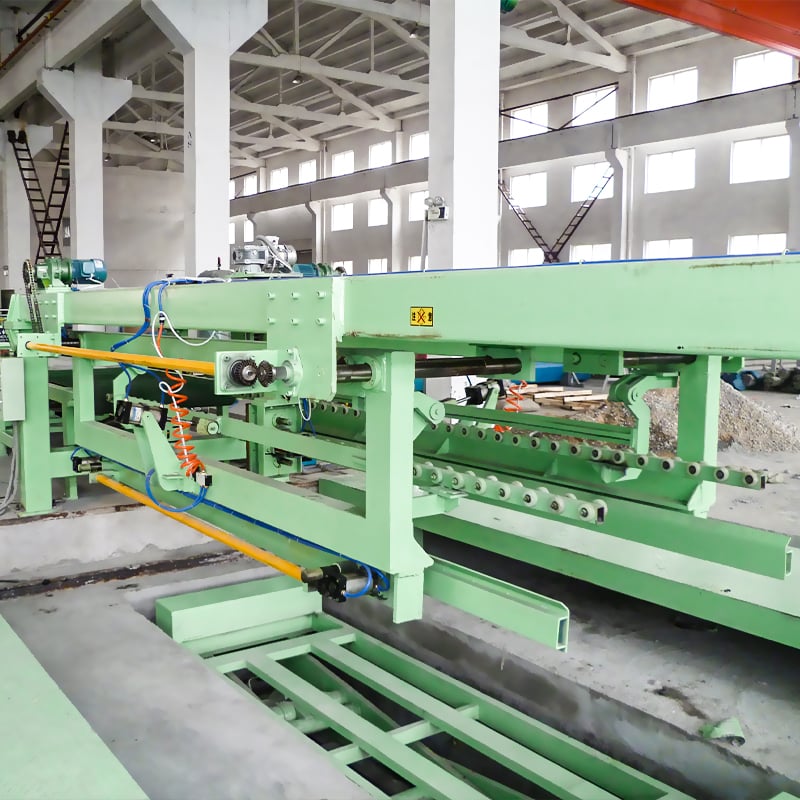

Steel Coil Cut To Length Line Machine

Sunway automatic cut to length line is used for uncoiling, leveling, and automatic length measuring and cutting. Electrical controlling by AC variable frequency and servo control, which has better length precision and efficiency.

Steel Coil Cut To Length Line Machine Details

Stand Base Select high quality steel as raw material with high strength and heavy duty, which has strong resistance to deformation.

Motor Adopt top brand motor for drive system, more stable and effective.

High Automatic Cut to length machine adopts PLC system. Customer can set production quantity, production speed on control cabinet.

Customization Senior and experienced engineer control the whole process for your customize.

Steel Coil Cut To Length Line Machine Parameters

The parameters mentioned above are for reference, and the machine can be customized.

What Is Combined Cut To Length Machine And Slitting Line Production Line?

A combined cut-to-length machine and slitting line production line is a manufacturing setup used in the metal processing industry. It is designed to efficiently process large coils of metal into smaller, more manageable sheets or strips according to specific customer requirements.

The production line typically consists of several interconnected machines and equipment. Here’s a brief overview of the key components:

1. Uncoiler: This machine unwinds the metal coil and feeds it into the production line. It ensures a continuous supply of material.
2. Leveler: The uncoiled metal strip passes through a leveler that removes any distortions or unevenness, ensuring a flat and smooth surface.
3. Slitter: The slitter is responsible for cutting the metal strip into narrower widths, known as slits or strips. It can have multiple sets of circular blades or rotating knives that make precise cuts.
4. Recoiler: After the slitting process, the individual strips are wound onto separate recoiler mandrels. This allows for easy handling and transportation.
5. Cut-to-Length Machine: This machine is used to cut the metal strip into precise lengths as specified by the customer. It typically employs hydraulic shearing or a flying shear mechanism to make accurate cuts.
6. Stacker: The cut-to-length sheets or slitted strips are stacked in an organized manner for convenient packaging or further processing.

The combined cut-to-length machine and slitting line production line offers flexibility in terms of producing both sheets of various lengths and narrower strips. It enables manufacturers to efficiently process large coils of metal, such as steel or aluminum, into smaller and more usable forms, suitable for a wide range of applications like automotive, construction, appliances, and more.

Application Of Fully Automatic Steel Coil Cut To Length Machine

A fully automatic steel coil cut-to-length machine has several applications across various industries. Here are some common applications:

1. Metal Service Centers: Steel coil cut-to-length machines are extensively used in metal service centers. These centers receive large coils of steel from manufacturers and process them into smaller, custom-sized sheets or strips according to customer requirements. The cut-to-length machine ensures accurate and precise cutting, allowing the service centers to meet diverse customer demands.
2. Automotive Industry: In the automotive industry, steel coil cut-to-length machines are utilized to produce sheets or strips of steel with precise dimensions. These steel sheets/strips are used for manufacturing automotive body panels, chassis components, frames, and other structural parts. The machine ensures consistent and high-quality cuts, enabling efficient production in the automotive sector.
3. Construction Industry: The construction industry often requires steel sheets or strips of specific lengths and sizes for various applications such as roofing, cladding, structural elements, and reinforcement. Fully automatic steel coil cut-to-length machines are used to quickly and accurately cut the coils into desired lengths, facilitating smooth construction processes.
4. Appliances and White Goods: Manufacturers of appliances and white goods, such as refrigerators, washing machines, air conditioners, and kitchen equipment, use steel coil cut-to-length machines to process steel coils into sheets or strips for making outer panels, cabinets, doors, and other components. The machine ensures consistent dimensions and smooth edges, resulting in high-quality finished products.
5. Metal Fabrication: Steel coil cut-to-length machines find applications in various metal fabrication processes, where precise and accurate cutting of steel sheets or strips is required. These machines help fabricators produce components like brackets, frames, supports, and other custom parts with specific dimensions.
6. Packaging Industry: Fully automatic steel coil cut-to-length machines are used in the packaging industry to produce steel sheets or strips of predetermined lengths. These materials are used for packaging applications such as metal drums, containers, boxes, and pallets. The machine ensures efficient and reliable production, contributing to the packaging industry’s productivity.

Overall, the application of a fully automatic steel coil cut-to-length machine is found in industries that require precise and customized cutting of steel coils into sheets or strips. The machine’s automation, accuracy, and efficiency help streamline manufacturing processes, enhance product quality, and meet customer specifications.
