Name: 2 Profile In 1 Roll Forming Machine
Brand: SUNWAY Machine

2 profile in 1 roll forming machine

Global Service

Our professional foreign traders will satisfy global businessman as customers' will.

Design & Create

There are 20+ experienced engineers here to design various components.

QC & QA

Each step of production process is carried out in strict accordance with ISO standards.

2 Profile In 1 Roll Forming Machine Summary

Material: Color steel, Galvanized coil
Material Thickness: 0.4-1.5mm
Forming Speed: 10-15m/min

2 Profile In 1 Roll Forming Machine Main Parts

Manual Decoiler
Feeding Guide

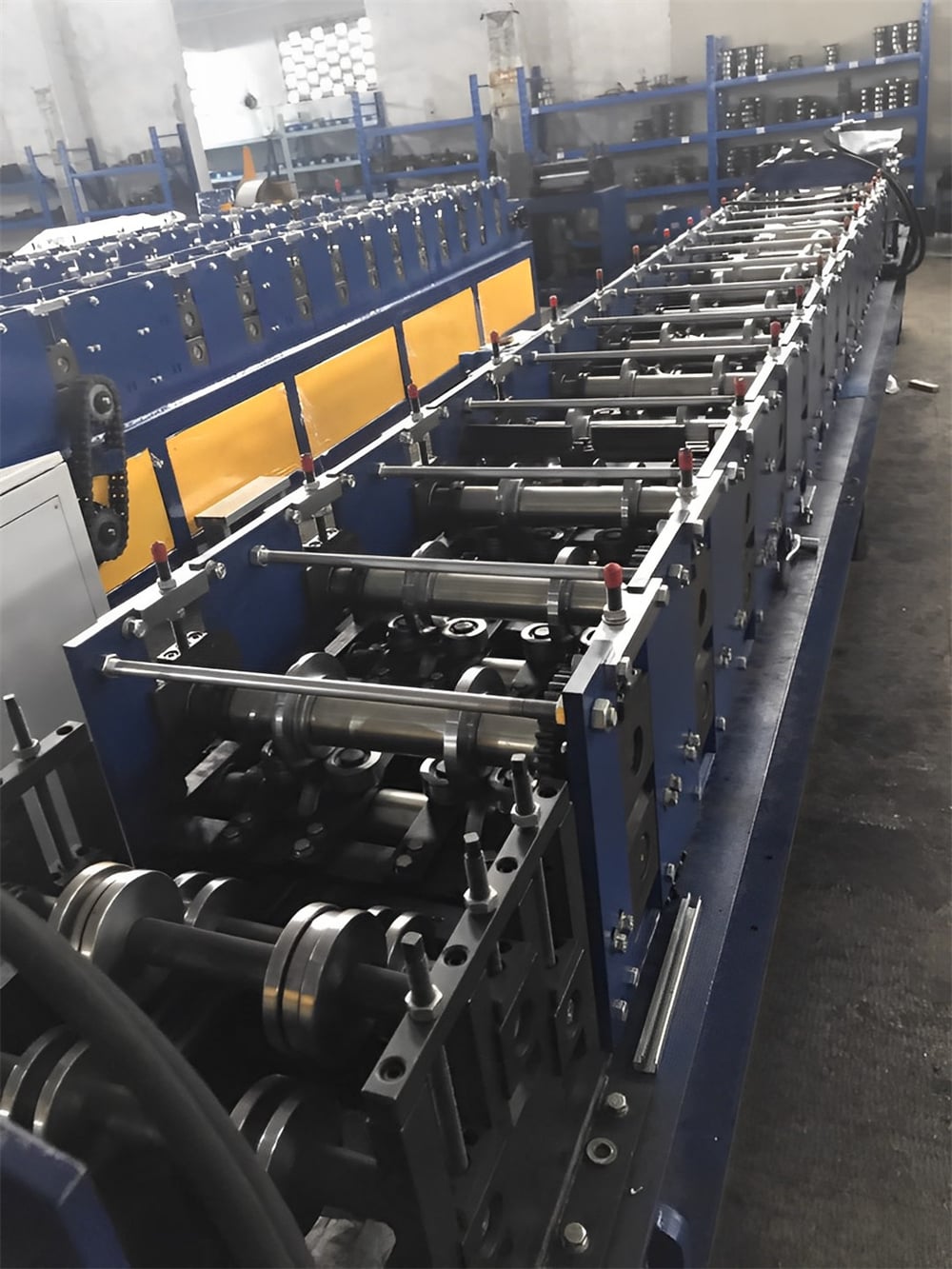

Roll Forming System
Hydraulic Cutting
PLC Control System
Run-out Table

Working Flowing

Decoiler— Guide–Roll Forming—- cutting–Run out table

(Above picture is only for reference)

2 Profile In 1 Roll Forming Machine Technical Data:

1). Manual Decoiler

* Decoiler Type: Manual Decoiler
* Weight Capacity Of Decoiler: 3 Ton
* Inner Diameter. Φ460-520mm
* Outer Diameter. Φ1400mm

Reference picture:

2). Roll Forming System

Axis Diameter:60 mm
Forming Roller stand: 10-12Groups
Main Axis material: First grade 45# steel, heated and quenched
Roller material: First grade 45# steel, with hard chrome 0.05mm, Quenched and heated process
Drive Type: 1” Chain of transmission
Chain material: 45#steel, HRC45-50
Machine Frame stand: Welded structural steel
Main motor Power: 5.5 KW

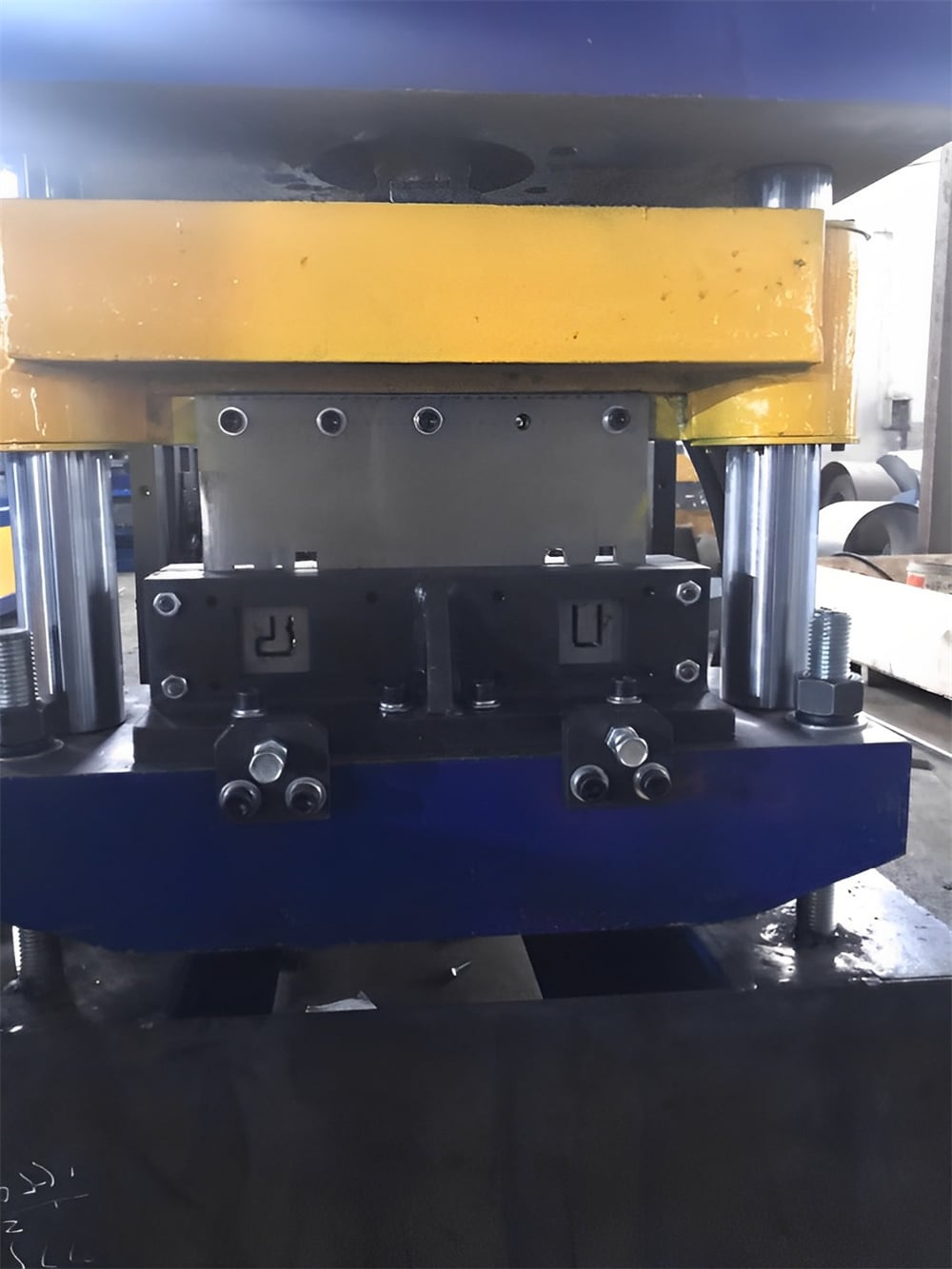

3) Cutting Device (Include 2 Size)

Cutting type: Hydraulic cutting
Hydraulic pump station power: 4 KW
Hydraulic pressure: 12Mpa
Hydraulic Blade and cutter material: Cr12, quenching process 58-62
Cutting length tolerance: 10M+/- 2.0 mm

4). Electrical System

Voltage: 380V, 3 Phase 50Hz
PLC Electrical control system: PANASONIC
Length Controller: Encoder Frequency Control System
Operation: Touch Screen
Transducer: Japan YASKAWA

5) Runout Table

Non-power type
Quantity:2

FAQ

Are you a manufacturer or trading company?

We are factory with professional production team and service consciousness just for exporting various types of laser machine.

Do you have after sales support?

Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.

What's your payment terms?

30% deposit is paid before production, the balance paid after inspection confirmation before shipment.

What can you do if the machine broken?

The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period, we will sell them at cost.

Will you deliver the right goods as ordered? How can I trust you?

Yes, we will. The core of our company culture is honesty and credit. Sunway is ALIBABA’s Gold supplier with BV assessment and CE certificate.

Do you sell only standard machines?

No, most of our machines are designed according to customers’ specifications, using famous brand components.

How to visit our company?

Fly to Shanghai airport: By high speed train from Shanghai to Wuxi (30 min),then we can pick up you.
